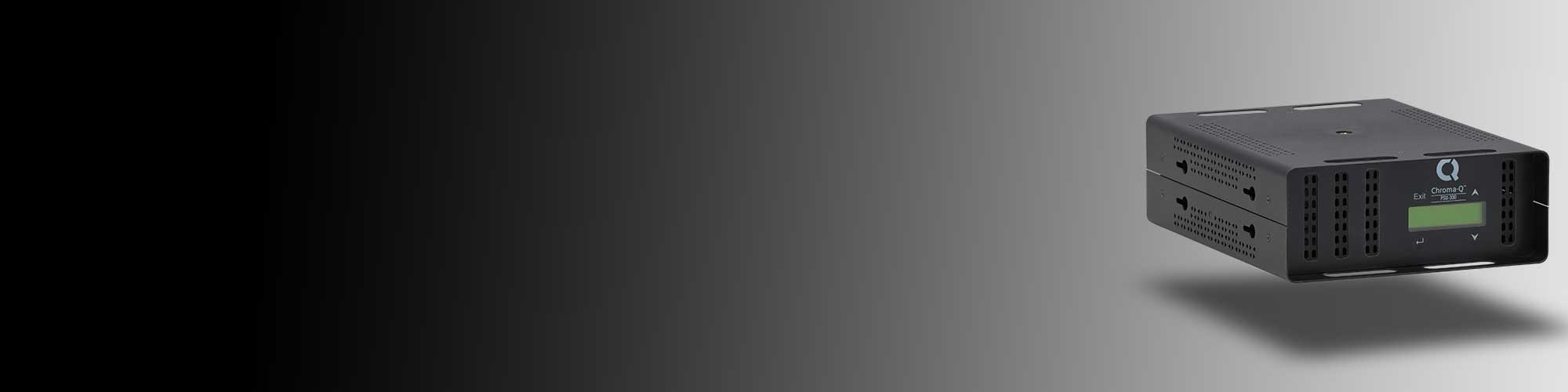

Color Force Compact™ 5 Way Power Supply

The power supply will control up to 5 x Color Force or Studio Force Compactfixtures.

Request A Demo

Key Features

  • Controls up to 5 Force Compact Fixture via 1 x 4 Pin Outlet with a maximum of 5 units
  • Magic Box enclosure - can be truss or 19" rack mounted (with optional rack ears)
  • 23 Pre-programmed looks
  • Stores up to 31 user programmed looks
  • 18 Control modes
  • Backlit LCD display
  • Master slave operation in stand alone mode
  • Nut insert for ½"-13UNC x ¾" bolt
Dimensions 219mm x 88mm x 279mm / 8.6" x 3.5" x 11"
Weight 3.8kg / 8.4lb
Shipping Dimensions 250mm x 125mm x 300mm / 14.5" x 7.5" x 3"
Shipping Weight 4.2kg / 9.2lb
Power Supply Built-in
Power Input Rating 100-120VAC, 4A; 200-240VAC, 2A; 50-60Hz
Power Factor 0.9
Power Consumption 360W (Maximum); 12W (Stand-by)
Power Connectors In/Out IEC (Power input), XLR 4-pin (Power & data output)
Data Connectors In/Out XLR 5-pin male in / XLR 5-pin female thru
Max cable run ~60m/200ft (XLR 4-pin - PSU to last unit)
Control Protocol ANSI E1.11 USITT DMX 512-A
Cooling System Forced - 1 fan
Operating Temperature 0°C - 40°C
Contruction Power coated steel
Colour Black
Built-In Hardware Nut insert for ½"-13UNC x ¾" bolt
IP Rating IP20
Approvals CSA C22. No. 166-M1983: R2008 CAN/CSA-C22.2 No. 60950-1-07 UL 60950-1:2007, EN 60950-1/A1:2010
Control Modes fxHSI, HSI, RGB, RGBA, sRGBI, Look Select Master Standalone, Slave Standalone
Dimming Curve Theatrical
Variable Effects Engine Yes
Effects Parameters Grouping, colour speed, colour fan, colour range, colour step, intensity effects, intensity fan
