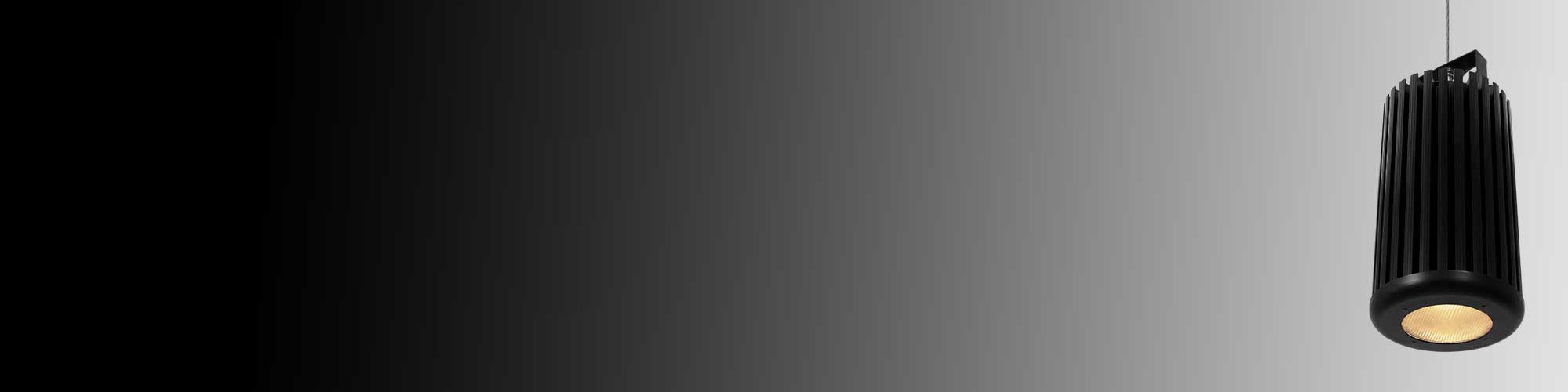

Inspire MD™

Switching to LED has never been so easy with Inspire MD™

Please note this item was discontinued in July of 2021.

Key Features

  • Built-in power supply using existing dimming system
  • Beautiful warm white @ 3,000K
  • Fully homogenized beam
  • Using a specially designed dimmer curve, the MD avoids intensity spikes at lower outputs

Request A Demo

Inspire MD Ordering Options

Please note this item was discontinued in July of 2021.

The Inspire MD™ LED house light is a powerful fixture capable of replacing conventional tungsten fixtures which connects directly to a traditional dimming system. This fixture provides a beautiful warm white, high CRI, with its fully homogenized lens with a choice of three beam angles. Inspire MD uses an energy-efficient LED design reducing maintenance and running costs. The Inspire MD uses proprietary Chroma-Q technology to ensures a smooth dimmer curve from 0-100 on standard dimming systems.

Features

  • Compact yet powerful - 6000 lumens
  • Choice of narrow, medium and wide beam angle models
  • Available in a black or white body
  • Beautiful warm white @ 3000K
  • Extremely smooth, uniform wash
  • Theatrical grade dimming
  • Ideal for house light replacements
  • Silent convection cooled - no fans
  • Multi-purpose - suitable for a wide range of applications
  • Low energy consumption @ 98w
  • 120v / 60Hz Phase cut mains dimming system
Product Code CHINHLMD - Narrow Black Body
CHINHLMDW - Narrow White Body
Net Dimensions (WxHxD) 181mm x 404mm x 181mm / 7” x 16” x 7”
Net Weight 6kgs / 13.5lbs
Shipping Dimensions (WxHxD) 501mm x 380mm x 300mm / 20” x 15” x 12”
Shipping Weight 8kgs / 18lbs
Power Supply Built-in
Power Input Rating 0-120VAC 60Hz 120VA
Power Factor 0.9 @ 120V AC
Power Consumption 105W (Max Intensity); 0W (Stand-by) @ 120V
Power Connectors In/Out Plug-in screw terminal (Input only)
Operating Temperature 0°C to 40°C
Cooling System Natural Convection
Construction Anodised aluminium extrusion
Colour Black / White
Built-In Hardware Mounting bracket (12.7mm / 1/2” diameter hole)
IP Rating IP20
Approvals CISPR 22 :2006/EN55022 :2006 & CISPR 24 :1997/
EN55024 :1998, ICES-003 :2004 & FCC Part 15
Subpart B: 2007, CSA C22. No. 166-M1983:R2008
UL 1573:2003; UL 8750, ICES-003:2016 and FCC
Part 15 Subpart B:2016
LEDs Warm white
Control Modes Using external resistive dimmer
LED Life L70 at 50,000 hours
Dimming Curve Smooth 0-100
Hot Lumen Output 6,000 hot lumens (narrow lens)
5,300 hot lumens (medium diffuser filter)
Optics Fully homogenised
Beam Angle 32º, 42º and 65º
Beam Distribution Symmetrical direct illumination
CCT 3,000K
CRI 93

Included Items: Medium Diffuser
Wide Diffuser
  • CHINTHB: Top Hat/Snoot for Inspire (Black)
  • CHINTHW: Top Hat/Snoot for Inspire (White)
  • CHINYK: Yoke Mount Kit for Inspire (Black)
  • CHINYKW: Yoke Mount Kit for Inspire (White)
  • CHINBDB: Barndoor for Inspire (Black)
  • CHINBDW: Barndoor for Inspire (White)
  • CHINIKBM: Blind Ceiling Installation Kit (Black)
  • CHINIKBMSW: Blind Ceiling Installation Kit (White)
  • CHINSIK15B: Blind Sloped Ceiling Kit - 0 TO 15 Degree Angle (Black Trim)
  • CHINSIK15W: Blind Sloped Ceiling Kit - 0 TO 15 Degree Angle (White Trim)
  • CHINSIK30B: Blind Sloped Ceiling Kit - 20 TO 30 Degree Angle (Black Trim)
  • CHINSIK30W: Blind Sloped Ceiling Kit - 20 TO 30 Degree Angle (White Trim)
  • CQ632-9120: Blind Ceiling Mount Kit (Black)
  • CQ632-9121: Blind Ceiling Mount Kit (White)

Narrow Illuminance Values



Medium Illumiance Values

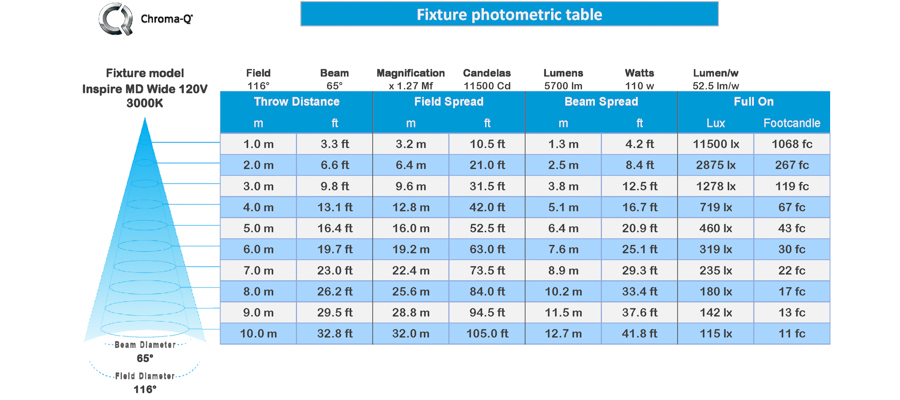

Wide Illuminance Values

Inspire MD™ Narrow 120V 3000k

Inspire MD™ Narrow 120V 3000k



Inspire MD™ Medium 120V 3000K

Inspire MD™ Medium 120V 3000K



Inspire MD™ Wide 120V 3000K

Inspire MD™ Wide 120V 3000K
