Color One 100X™

Reach NEW Heights of LED PAR Performance

The next generation of the Chroma-Q® Color One family is here: the Color One 100X™ LED PAR! This must-see luminaire features the same innovative homogenised beam as the Color One 100™, only with nearly 60% more output. The 100X's custom optical design and fully homogenised output delivers a powerful, smooth, uniform, and defined 19° beam, with outstanding colour blending across the spectrum and no unsightly colour separation shadows. RGBA emitters deliver outstanding colours across the spectrum - including deep-cold blues, red-hot lava looks, and super-soft pastels, as well as a complete range of whites ---all from ONE source.

Utilising core LED technology from the Chroma-Q® premium performance lighting range, the multi-purpose fixture is ideal for a wide range of applications and provides a powerful, creative lighting tool.

Key Features

Nearly 60% brighter than its predecessor
Fully homogenised beam
RGBA colour-mixing palette
Extremely uniform wash
Defined 19° beam
Bold saturates and subtle pastels from ONE source
High CRI of 93
Floor, truss, or wall mountable
Quiet, convection cooled, no fans
Theatrical grade dimming
Chroma-Q calibration provides exceptional fixture-to-fixture consistency

Request A Demo

Color One™ 100X Ordering Options

Smooth, Homogenised Optics
The Color One's custom optical design and fully homogenised output provides a smooth, uniform, and defined 19° beam, with outstanding colour blend across the spectrum and no unsightly colour separation shadows.

This makes the Color One ideal for use as a front and backlight with clean shadows, and an uplighter with a smooth, even beam - all from ONE source.

Power Across The Spectrum
The Color One's huge RGBA colour-mixing palette delivers outstanding colour blend across the spectrum - including deep-cold blues, red-hot lava looks, and super-soft pastels - as well as a complete range of whites - all from ONE source.

High CRI
With RGBA colour mixing providing a high CRI of 93, the fixture can achieve extremely accurate colour matching.

Theatrical Grade Dimming
Theatrical grade dimming emulates the extremely smooth dimming curve of tungsten fixtures.

Multi-Purpose Workhorse Fixture
With the advanced feature set also including convection cooling for quiet operation, a versatile mounting yoke, and a choice of IP20 / IP65* models, the Color One 100™ is suitable for numerous entertainment lighting applications - complementing the popular Chroma-Q® Color Force™ and Inspire™ LED fixtures ranges.

Convenient Remote-Controlled Operation
With a simple-to-use Infra-Red remote control included with each fixture, you can be up and running within minutes without the requirement of a lighting console - saving time and labour with instant access to preset colours, on/off, dimming, and effects.

Compatible With Industry-Standard Accessories
To enable maximum flexibility with users' existing production inventory, the Color One accepts industry-standard 6.25" accessories such as egg crates, barndoors, and top hats.

Product Code	CHCONE100XRGBA (IP20)	CHCONE100XRGBAIPSS (IP65)
Net Dimensions (Full Open Yoke)	214mm x 267mm x 232mm / 8.5" x 10.5" x 9"
New Weight	3.8kg / 8.5lb	4.3kg / 9.5lb
Shipping Dimensions	406mm x 228mm x 292mm / 16" x 9" x 11.5"
Shipping Weight	5.5kg / 12lb	6kg / 12.5lb
Power Supply	Built-in
Power Input Rating	100-240V AC 50-60Hz 125VA
Power Factor	0.539
Power Consumption	63W (Maximum); 5.5W (Stand-by)
Typical Power & Current	Measurements done with all LEDs at maximum intensity. Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Power Connectors In/Out	powerCON	Trailing lead
Data Connectors In/Out	XLR 5-pin	Neutrik Stainless Steel XLR 5-pin on 914mm/36" Tails In & Out
Control Protocol	ANSI E1.11 USITT DMX 512-A
Cooling System	Convection
Operating Temperature	0°C to 40°C	-20°C to +40°C
Construction	Cast machined aluminium
Colour	Black (custom colours available on request)
Built-In Hardware	Split Yoke, 6.25" Accessory Holder
IP Rating	IP20	IP65*
Approvals	CISPR 15 / EN55015 & EN61547, FCC Part 15 Subpart B:2012 / ICES-003:2012, CSA C22.2, UL 1573, IEC 60598

LED Engines	1
LEDs Per Engine	Combination of Red, Green, Blue and Amber
Control Modes	4 channels RGBA, 5 channels RGBAI, 3 channels HSI, 3 channels RGB, 3 channels MLED RGB, Master, Slave
Dimming Curve	Theatrical
Variable Effects Engine	Yes (via Wireless IR Remote)
Effects Parameters	Full Color Scroll, Warm Color Scroll, Cold Color Scroll and Fade In/Fade Out

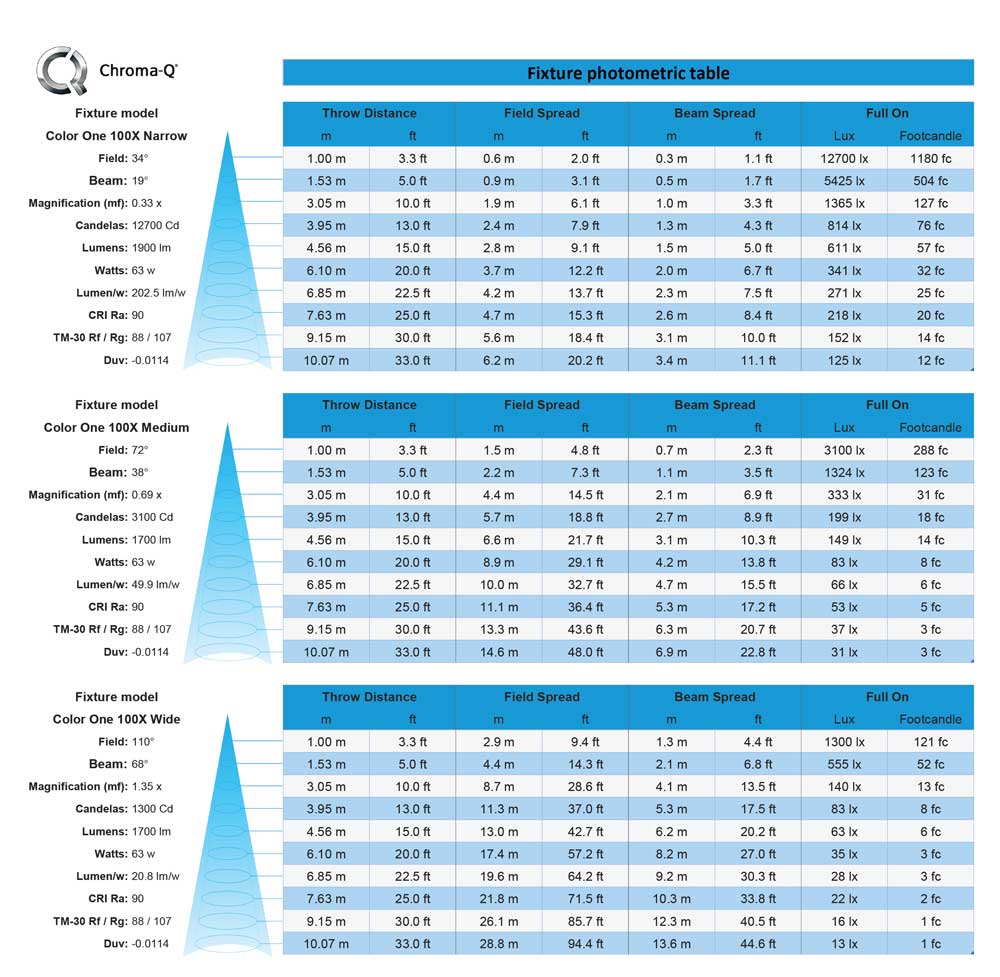

Hot Lumen Output (Combined)	1,950
Optics	Fully homogenised
Beam Angle	19°
Beam Distribution	Symmetrical direct illumination
CCT	Adjustable 1,000 - 10,000K
Colour Gamut	Performance enhanced
CRI	93
Lamp Life	L70 at 50,000 hours

Optional

CHCONELK: Lens Kit Diffusion 36 & 50 Degree for Color/Studio One
CHCONEREMOTE: Remote IR Wireless for Color/Studio One
CHCONE100BD: Barndoor For Color/Studio One100, BK
CHCONE100ECL: Egg Crate Louver For Color/Studio One100, BK
CHCONE100TH: Top Hat For Color/Studio One100, BK
CHUSBLOADER2: Chroma-Q Uploader

Included

CHCONEREMOTE: Remote IR Wireless for Color/Studio One
Diffusion Frame (included) - Does not work with the IP-rated version

Color One 100X™

PDF Download

Product Code	CHCONE100XRGBA (IP20)
Net Dimensions (Full Open Yoke)	214mm x 267mm x 232mm / 8.5" x 10.5" x 9"
New Weight	3.8kg / 8.5lb
Shipping Dimensions	406mm x 228mm x 292mm / 16" x 9" x 11.5"
Shipping Weight	5.5kg / 12lb
Power Supply	Built-in
Power Input Rating	100-240V AC 50-60Hz 125VA
Power Factor	0.539
Power Consumption	63W (Maximum); 5.5W (Stand-by)
Typical Power & Current	Measurements done with all LEDs at maximum intensity. Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Power Connectors In/Out	powerCON
Data Connectors In/Out	XLR 5-pin
Control Protocol	ANSI E1.11 USITT DMX 512-A
Cooling System	Convection
Operating Temperature	0°C to 40°C
Construction	Cast machined aluminium
Colour	Black (custom colours available on request)
Built-In Hardware	Split Yoke, 6.25" Accessory Holder
IP Rating	IP20
Approvals	CISPR 15 / EN55015 & EN61547, FCC Part 15 Subpart B:2012 / ICES-003:2012, CSA C22.2, UL 1573, IEC 60598

Product Code	CHCONE100XRGBAIPSS (IP65)
Net Dimensions (Full Open Yoke)	214mm x 267mm x 232mm / 8.5" x 10.5" x 9"
New Weight	4.3kg / 9.5lb
Shipping Dimensions	406mm x 228mm x 292mm / 16" x 9" x 11.5"
Shipping Weight	6kg / 12.5lb
Power Supply	Built-in
Power Input Rating	100-240V AC 50-60Hz 125VA
Power Factor	0.539
Power Consumption	63W (Maximum); 5.5W (Stand-by)
Typical Power & Current	Measurements done with all LEDs at maximum intensity. Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Power Connectors In/Out	Trailing lead
Data Connectors In/Out	Neutrik Stainless Steel XLR 5-pin on 914mm/36" Tails In & Out
Control Protocol	ANSI E1.11 USITT DMX 512-A
Cooling System	Convection
Operating Temperature	-20°C to +40°C
Construction	Cast machined aluminium
Colour	Black (custom colours available on request)
Built-In Hardware	Split Yoke, 6.25" Accessory Holder
IP Rating	IP65*
Approvals	CISPR 15 / EN55015 & EN61547, FCC Part 15 Subpart B:2012 / ICES-003:2012, CSA C22.2, UL 1573, IEC 60598

Product Code	CHCONE100XRGBAW (IP20)
Net Dimensions (Full Open Yoke)	214mm x 267mm x 232mm / 8.5" x 10.5" x 9"
New Weight	3.8kg / 8.5lb
Shipping Dimensions	406mm x 228mm x 292mm / 16" x 9" x 11.5"
Shipping Weight	5.5kg / 12lb
Power Supply	Built-in
Power Input Rating	100-240V AC 50-60Hz 125VA
Power Factor	0.539
Power Consumption	63W (Maximum); 5.5W (Stand-by)
Typical Power & Current	Measurements done with all LEDs at maximum intensity. Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Power Connectors In/Out	powerCON
Data Connectors In/Out	XLR 5-pin
Control Protocol	ANSI E1.11 USITT DMX 512-A
Cooling System	Convection
Operating Temperature	0°C to 40°C
Construction	Cast machined aluminium
Colour	White (custom colours available on request)
Built-In Hardware	Split Yoke, 6.25" Accessory Holder
IP Rating	IP20
Approvals	CISPR 15 / EN55015 & EN61547, FCC Part 15 Subpart B:2012 / ICES-003:2012, CSA C22.2, UL 1573, IEC 60598
