Color Block 2 Plus™
Please note this item was discontinued in May of 2016
The Chroma-Q® Color Block 2 Plus™ is a higher output version of the original Color Block 2™ multi-purpose LED fixture that retains the same versatile modular 'building block' design, single colour RGBA optics, high light output and theatrical grade dimming to create an exceptional all-round feature set.
Key Features
- Color Block 2 emulation mode
- Compatible with all Color Block 2 PSUs and accessories
- CRI of 90 – for tungsten emulation
- Extensive colour range - create subtle theatrical hues
- Single colour diffused optics - virtually eliminate multicoloured shadows & offer camera friendly output
- Modular construction with range of fixing accessories - easily configured as a wide variety of shapes
Color Block 2 Emulation Mode
For maximum convenience, it also features a Color Block 2™ emulation mode, to simulate the lumen output of the original LED engine when used alongside other Color Block 2 fixtures.
Extensive Colour Palette
With its extensive colour palette and high CRI of 90, the Color Block 2 Plus™ fixture is a master at creating vibrant bold colours and subtle theatrical hues. Combined with its built-in variable colour temperature capability, even flesh tones look natural, satisfying all but the most critical eye.
Single Colour Output
The four large, camera-friendly LED cells offer performers less glare and mix beautifully for single colour output, virtually eliminating the frustrating colour separation shadows normally synonymous with LED lighting. The beam optics have a soft asymmetrical quality carefully crafted to give an immediate perfect colour blend for uplighting surfaces, yet retain a soft Fresnel-like edge for direct illumination. The Color Block 2 Plus™ fixture is bright enough to uplight a 6m / 20 foot set and then some.
Theatrical Grade Dimming
In addition, the fixture provides a smooth, theatrical grade dimming experience, whilst retaining the instant strobe-like control of intensity normally associated with LED technology.
| Product Code | CHCB4M2P |  |
|---|---|---|

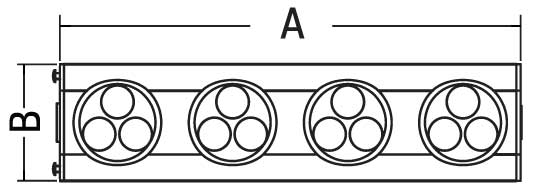

| A (no fixings) | 250mm / 9.8" | |
| B (no fixings) | 62mm / 2.4" | |
| Depth (no fixings) | 119mm / 4.7" | |
| Weight | 1.4kg / 3.1lbs | |
| Shipping Dimensions | 305mm x 127mm x 171mm / 12.5" x 5" x 6.75" | |
| Shipping Weight | 1.4kg / 3.1lbs | |
| Power & Connections | Daisy-chained power & data connections | |
| Power Supply | External - Color Block 5-Way (to suit up to 5 fixtures), Color Block 30-Way (to suit up to 30 fixtures) | |
| Power Input Rating | 48V DC | |
| Power Factor | 0.978 | |
| Power Consumption | 60W | |
| Typical Power & Current | Measurements done with all LEDs at max.intensity. Measurements made at nominal voltage. Allow for a deviation of +/- 10%. | |
| Power Connector Input | XLR4 | |
| Power Connector Output | XLR4 | |
| Data Connectors In/Out | XLR4 in/out | |
| Max Cable Run | 60m / 200' | |
| Control Protocol | ANSI E1.11 USITT DMX 512-A | |
| Cooling System | Forced Air - 1 fan | |
| Operating Temperature | 0°C to 40°C | |
| Construction | Anodised aluminium extrusion | |
| Colour | Black | |
| Built-In Hardware | Interlocking system & quick release catches for connecting as battens, 2 x M10 nuts for additional fixings | |
| IP Rating | IP20 | |
| Approvals | CISPR22/EN55022 & CISPR 24/EN55024, ICES-003:2004 / FCC Part 15 Subpart B: 2007 | |
| LED Engines | 4 |
|---|---|
| LEDs Per Engine | 12 (3 x RGBA) |
| Total LEDs | 48 |
| Control Modes | PSU05B: 67 channels FxHSI, 60 channels HSI, 60 channels RGB (*Magic Amber), 21 channels FxHSI, 15 channels HSI, 15 channels RGB (*Magic Amber), 9 channels FxHSI, 3 channels HIS, 3 channels RGB (*Magic Amber), 80 channels RGBA, 80 channels RGBI, 20 channels RGBA, 20 channels RGBI (*Magic Amber), 4 channels RGBA, 4 channels RGBI (*Magic Amber), 1 channel Look Select; PSU30: 367 channels FxHSI, 360 channels HSI, 360 channels RGB (*Magic Amber), 96 channels FxHSI, 90 channels HSI, 90 channels RGB (*Magic Amber), 9 channels FxHSI, 3 channels HSI, 3 channels RGB (*Magic Amber), 480 channels RGBA, 480 channels RGBI (*Magic Amber), 120 channels RGBA, 120 channels RGBI (*Magic Amber), 4 channels RGBA, 4 channels RGBI (*Magic Amber), 1 channel Look Select |
| Dimming Curve | Theatrical |
| Variable Effects Engine | Yes |
| Effects Parameters | Grouping, colour speed, fan, range, step, intensity effects, intensity fan |
| Hot Lumen Output (Combined) | 600 |
| Optics | Specialised close focus lens |
| Beam Angle | 25° (approx.) |
| Beam Distribution | Asymmetrical direct illumination |
| CCT | Adjustable 1,000 - 10,000K |
| Colour gamut | Performance enhanced |
| CRI | 90 |
| Lamp Life | L70 at 50,000 hours |
