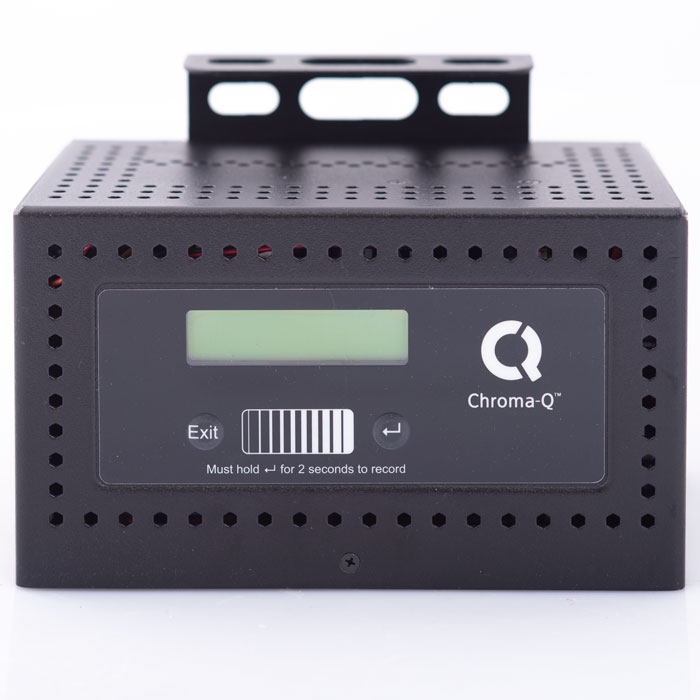

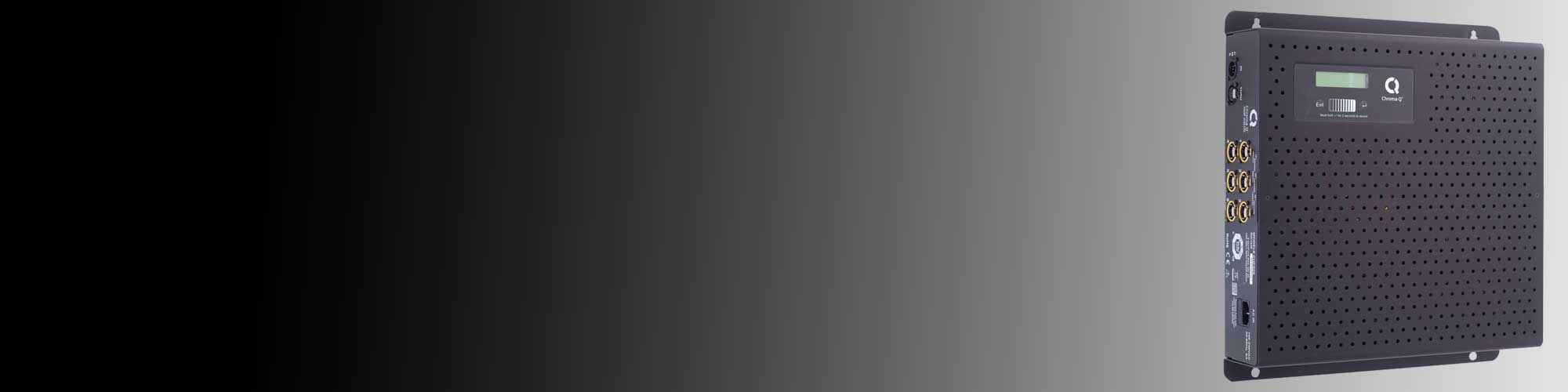

Color Span 2™ PSU
Color Span 2 Power Supply
The power supply shall:
- Provide control of multiple fixtures up to 1,200mm / 48” each in length.
- Feature a large backlit LCD display.
- Feature built-in programming modes.
- Work as a stand-alone unit.
- Feature a real-time clock.
- Come with nine pre-programmed looks and store up to 42 custom looks on board.
Color Span 2 PSU Ordering Options
Controls multiple 1,200mm / 48” Color Span / Color Span 2 fixtures.
- Nine pre-programmed looks.
- Stores up to 42 user programmed looks.
- Real-time clock
- Synchronisation across power supply for the effects engine.
- True random strobe effect.
- 12 control modes.
- Three grouping modes.
- Backlit LCD display.
- Choice of DMX or stand-alone control modes.
- Color Span 2™ PSU - 6 Way Spec Sheet
- Color Span 2™ PSU - 18 Way Spec Sheet
- Color Span 2™ Quick Start Guide V2.0
- Color Span 2™ PSU - 6 Way Software
- Color Span 2™ PSU - 18 Way Software
- Color Span 2™ PSU - 6 Way Exploded Diagram Rev B
- Color Span 2™ PSU - 18 Way Exploded Diagram Rev B
- Color Span 2™ PSU2 - Exploded Diagram Rev B
- Color Span 2™ PSU2 - Line Drawing
- Color Span 2™ PSU - 6 Way CAD Symbol
- Color Span 2™ PSU - 18 Way CAD Symbol
- Color Span 2™ PSU Declaration of Conformity
- Download All
| 2 Way Power Supply - CH617-30XX | 6 Way Power Supply - CH617-15XX | 18 Way Power Supply - CH617-10XX | |
| Net dimensions | Width: 194mm / 7.6” Height: 140mm / 5.5” Depth: 127mm / 5” |
Width: 405mm / 16” Height: 362mm / 14.3” Depth: 91mm / 3.6” |
Width: 660mm / 26” Height: 483mm / 19” Depth: 88mm / 3.5” |
| Net weight | 2.8kg / 6.2lbs | 9.4kg / 20.6lbs | 22kg / 49lbs |
| Shipping dimensions | Width: 280mm / 11” Height: 185mm / 7.3” Depth: 130mm / 5.1” |
Width: 510mm / 20.0” Height: 450mm / 17.7” Depth: 145mm / 5.7” |
Width: 810mm / 32” Height: 520mm / 20.5” Depth: 165mm / 6.5” |
| Shipping weight | 3.0kg / 6.7lbs | 10.5kg / 23lbs | 25kg / 55lbs |
| Power input rating | 100-240V AC, 50-60Hz, 3A | 100-240V AC, 50-60Hz, 6A | 100-240V AC, 50-60Hz, 16A |
| Power consumption | 2.5A @ 110V AC; 1.75A @ 230V AC | 6A @ 120V AC; 3.5A @ 230V AC | 20A @ 120V AC; 10A @ 230V AC |
| Typical power & current | Measurements were done with all LEDs at max. intensity. Measurements made at nominal voltage. Allow for a deviation of +/- 10%. | Measurements done with all LEDs at max. intensity. Measurements made at nominal voltage. Allow for a deviation of +/- 10%. | Measurements done with all LEDs at max. intensity. Measurements made at nominal voltage. Allow for a deviation of +/- 10%. |
| Power connector in/out | IEC chassis male | IEC chassis male | Trailing lead |
| Data connectors in/out | RJ45 | RJ45 | RJ45 |
| Max cable run | 5m / 16’ | 5m / 16’ | 5m / 16’ |
| Control protocol | ANSI E1.11 USITT DMX 512-A | ANSI E1.11 USITT DMX 512-A | ANSI E1.11 USITT DMX 512-A |
| Cooling system | Ventilation required at the front, sides & top | 1 x fan, ventilation required at the front & rear | 5 x rear, 1 x side mounted fans, ventilation required at the front & rear |
| Operating temperature | 0°C to 40°C | ||
| Construction | Powder coated steel | Powder coated steel | Powder coated steel |
| Colour | Black | Black | Black |
| IP rating | IP20 | IP20 | IP20 |
| Approvals | CISPR 22:2006/EN55022:2006, CISPR 24:1997/EN55024:1998, ICES-003:2004, FCC Part 15 Subpart B:2007, CSA C22. 166-M1983: R2008, CAN/CSA-C22.2 60950-1-07, UL 60950-1:2007 |
EN55103-1:1996, EN55103-2:1996, ICES-003:2004, FCC Part 15 Subpart B:2006, CAN/CSA-C22.2 No. 60950-1-07, UL 60950-1:2007 | EN55103-1:1996, EN55103-2:1996, ICES-003:2004, FCC Part 15 Subpart B:2006, CAN/CSA-C22.2 No. 60950-1-07, UL 60950-1:2007 |
| Control modes | 13 channels fxHSI, 6 channels HSI, 6 channels RGB, 9 channels fxHSI, 3 channels HSI, 3 channels RGB, 8 channels RGBA, 8 channels RGBI, 4 channels RGBA, 4 channels RGBI, 1 channel LkSel, Demo | 25 channels fxHSI, 18 channels HSI, 18 channels RGB, 9 channels fxHSI, 3 channels HSI, 3 channels RGB, 24 channels RGBA, 24 channels RGBI, 4 channels RGBA, 4 channels RGBI, 1 channel LkSel, Demo | 61 channels FxHSI, 54channels HSI, 54 channels RGB, 9 channels FxHSI, 3 channels HSI, 3 channels RGB, 72 channels RGBA, 72 channels RGBI, 4 channels RGBA, 4 channels RGBI, I channel LkSel, Demo |
| Variable effects engine | Yes | Yes | Yes |
| Effects parameters | Grouping, colour speed, colour fan, colour range, colour step, intensity effects, intensity fan | Grouping, colour speed, colour fan, colour range, colour step, intensity effects, intensity fan | Grouping, colour speed, colour fan, colour range, colour step, intensity effects, intensity fan |
