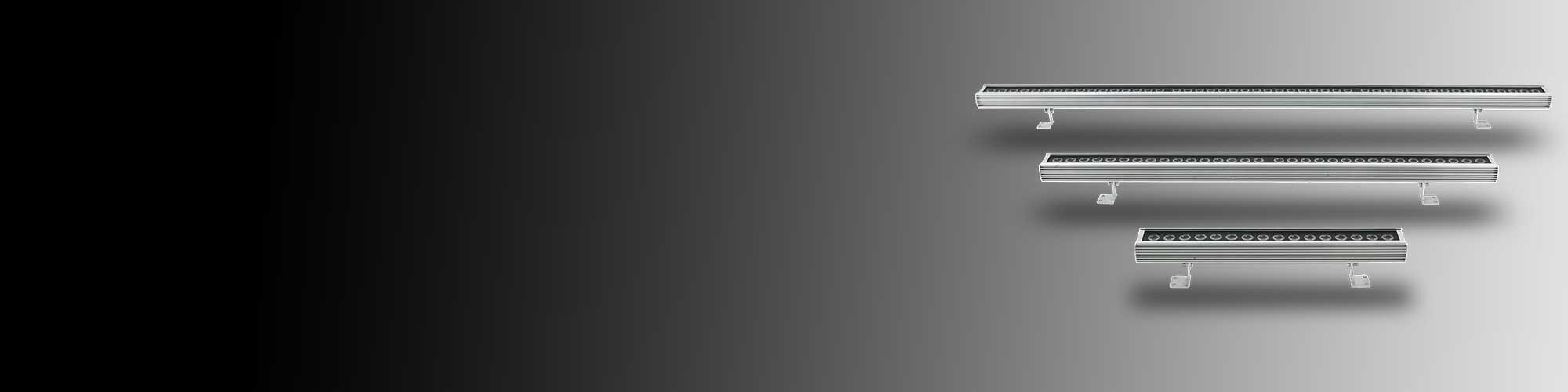

Color Span 2™
Customize your own low profile, ultra bright LED cove lighting and wall wash system.

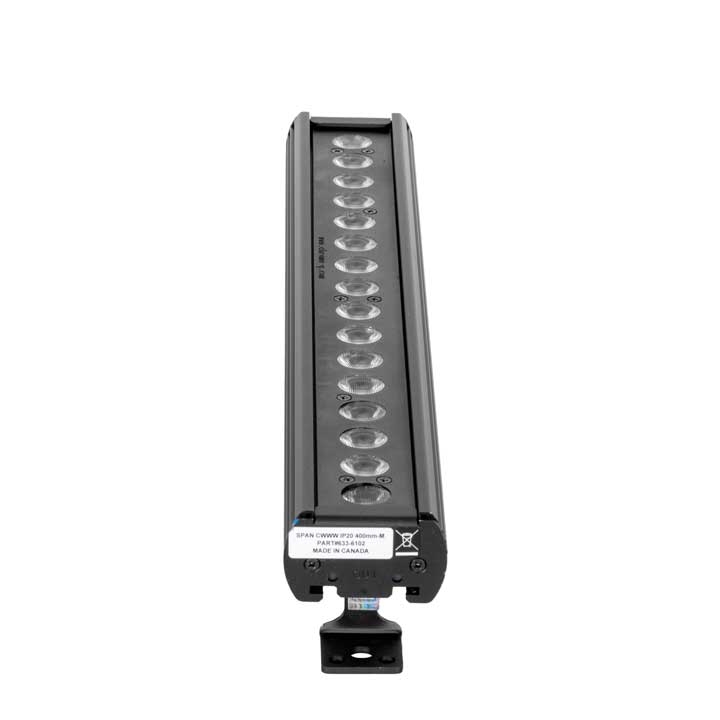

The Chroma-Q® Color Span 2™ is a configurable low profile, ultra-bright LED cove lighting and wall wash system for wide-ranging applications featuring an improved second-generation design. The fixture gives lighting designers, specifiers, and end-users the flexibility to specify many aspects of its design to meet their particular application needs, including:
- IP rating: indoor (IP20)
- Body length: 400mm / 16", 800mm / 32" or 1,200mm / 48"
- Body colour: 10 different colour options available
- LED colours: RGBA, single colour Red, Green, Blue, Amber, Cool White, Warm White, or any colour combination
- Optics: narrow, medium, or wide beam angles
This vast range of configurations, combined with a very powerful 2,000 lumens output per 1.2m / 4 foot and ultra-slim design, makes the Color Span 2™ suitable for a wide range of wall wash, cove, effects, and feature lighting applications in the architectural and entertainment sectors.
As well as benefitting from the same high-quality components and innovative LED technologies found in other leading Chroma-Q® LED products, the fixture's highly efficient solid-state technology requires less power and maintenance compared to conventional luminaires, enabling it to wash a 21.6m / 72 foot long wall from just a single wall outlet.
Request A DemoColor Span 2 Ordering Options
Key Features
- Configure the body length, body colour, LED colours (4 circuits), and optics
- Low profile LED cove lighting and wall wash system
- Ultra-bright - 2,000 lumens per 1.2m / 4ft
- Compatible with Color Span 2, 6 & 18-way power supplies
- Smooth, linear dimming curve
- Optional RGBA *Magic Amber configuration
*Magic Amber is the term used for the unit's ability to bring in amber when mixing colours that require it
- Color Span 2™ Brochure (English)
- Color Span 2™ Spec Sheet
- Color Span 2™ User Manual V2.0
- Color Span 2™ Quick Start Guide V2.0
- Color Span 2™ Exploded Diagram IP20 400MM
- Color Span 2™ Exploded Diagram IP20 800MM
- Color Span 2™ Exploded Diagram IP20 1200MM
- Color Span 2™ Line Drawing 400mm
- Color Span 2™ Line Drawing 800mm
- Color Span 2™ Line Drawing 1200mm
- Color Span 2™ IP20 1200MM IES

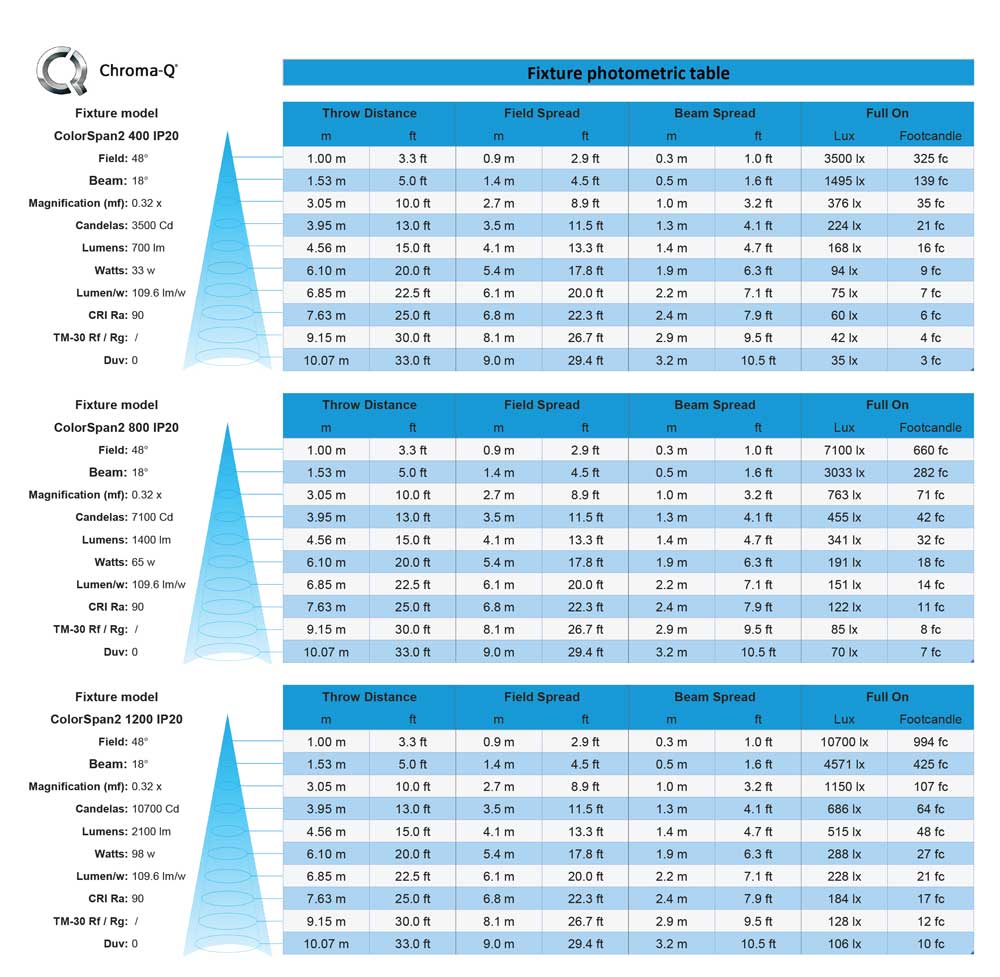

- Color Span 2™ Photometric Table v3-27-22
- Color Span 2™ IP20 400MM CAD Symbol
- Color Span 2™ IP20 800MM CAD Symbol
- Color Span 2™ IP20 1200MM CAD Symbol
- Color Span 2™ IP20 400MM 2D Symbols DWG
- Color Span 2™ IP20 800MM 2D Symbols DWG
- Color Span 2™ IP20 1200MM 2D Symbols DWG
- Color Span 2™ IP20 400MM 3D Symbols DWG
- Color Span 2™ IP20 800MM 3D Symbols DWG
- Color Span 2™ IP20 1200MM 3D Symbols DWG
- Chroma-Q VectorWorks Symbols
- Color Span 2™ Declaration of Conformity
- Download All
Configure the Color Span 2 fixture by choosing from the following options:
| IP Rating | Length (in mm) | Body Colour | LED Colours (in sets of x4 LEDs) | Beam Angles | Your Product Code |
|---|---|---|---|---|---|
| IP20 | 400 800 1,200 |
BK = Black WH = White SI = Silver GO = Gold GR = Green RE = Red PE = Pewter CH = Champagne BL = Blue LB = Light Bronze |
R = Red G = Green B = Blue A = Amber CW = Cool White WW = Warm White |
N = Narrow M = Medium W = Wide |
CHSP2 (followed by your 5 option codes) |
| Product Code Examples | |||||
| IP20 | 400 | BK | RGBA | N | CHSP2-IP20-400-BK-RGBA-N |
| IP20 | 800 | WH | RRRR | M | CHSP2-IP20-800-WH-RRRR-M |
| 400mm / 16" | 800mm / 32" | 1200mm / 48" | |
|---|---|---|---|
| Dimensions - IP20 | 416mm x 87mm x 60mm / 16.4" x 3.4" x 2.4" | 800mm x 87mm x 60mm / 32" x 3.4" x 2.4" | 1213mm x 87mm x 60mm / 47.8" x 3.4" x 2.4" |
| Weight - IP20 | 1.1 kgs / 2.5 lbs | 2 kgs. / 4.5 lbs. | 2.8 kgs. / 6.1 lbs. |
| Shipping Dimensions | 584mm x 152mm x 114mm / 23" x 6" x 4.5" | 991mm x 152mm x 114mm / 39" x 6" x 4.5" | 1422mm x 152mm x 114mm / 56" x 6" x 4.5" |
| Shipping Weight - IP20 | 1.5 kgs. / 3.3 lbs. | 2.8 kgs. / 6.2 lbs. | 3.7 kgs. / 8.2 lbs. |
| Power Input Rating | See power supply specifications | ||
| Power & Data Connector | 1 x RJ45 Chassis - In & 1 x RJ45 Chassis - Out | ||
| Max cable run | 15m / 50' | ||
| Control Protocol | ANSI E1.11 USITT DMX 512-A | ||
| Cooling System | Convection | ||
| Operating Temperature | 0°C to 40°C | ||
| Construction | Anodised aluminium extrusion | ||
| Colour | Black, White, Silver, Gold, Green, Red, Pewter, Champagne, Blue & Light Bronze | ||

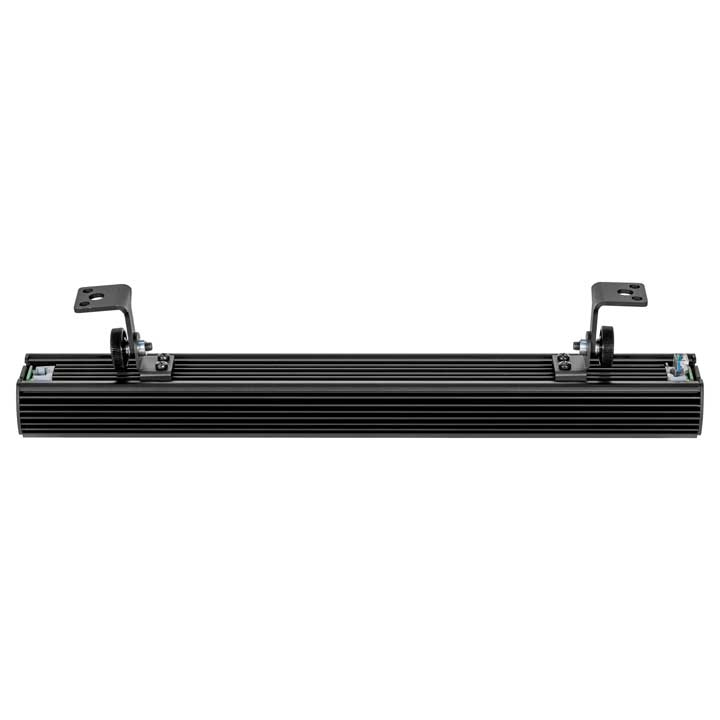

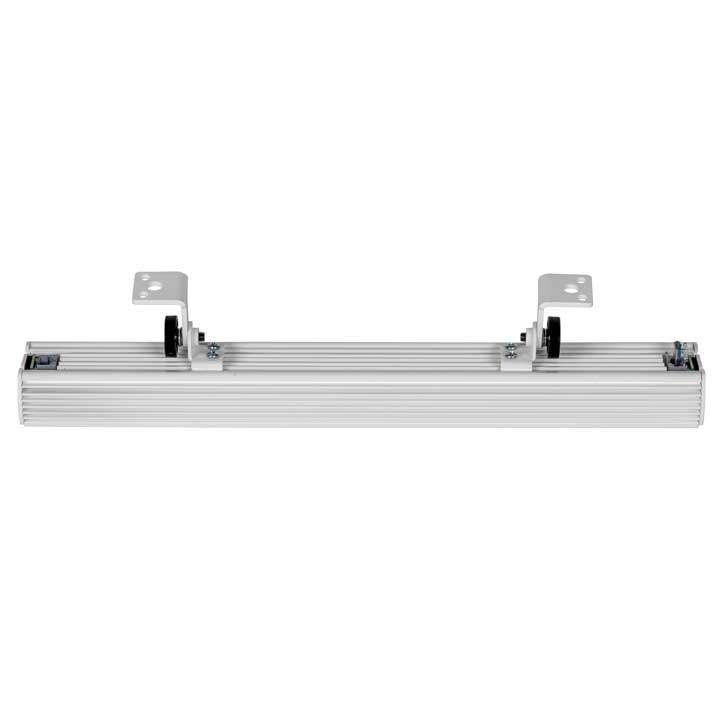

| Built-In Hardware | Angle bracket for wall, ceiling & floor mounting | ||
| IP Rating | IP20 | ||
| Approvals | EN55103-1:1996, EN55103-2:1996, ICES-003:2004, FCC PART 15 Subpart B:2006 | ||
| 400mm / 16" | 800mm / 32" | 1200mm / 48" | |
|---|---|---|---|
| LEDs | 4 x RGBA | 8 x RGBA | 12 x RGBA |
| LED Engines | 1 | 2 | 3 |
| LEDs Per Engine | 16 | 16 | 16 |
| Total LEDs | 16 | 32 | 48 |
| Control Modes | See Color Span PS18, PS06 & PS02 | ||
| Dimming Curve | Theatrical | ||
| Variable Effects Engine | See Color Span PS18, PS06 & PS02 | ||
| Effects Parameters | See Color Span PS18, PS06 & PS02 | ||
| Hot Lumen Output (Combined) | 660 hot lumens (based on RGBA LED circuits) | 1,300 hot lumens (based on RGBA LED circuits) | 2,000 hot lumens (based on RGBA LED circuits) |
| Red | TBD | TBD | TBD |
| Green | TBD | TBD | TBD |
| Blue | TBD | TBD | TBD |
| Amber | TBD | TBD | TBD |
| Optics | Close focus lens | ||
| Beam Angle | Narrow (12º), medium (23º) or wide (40º) (approx.) | ||
| Beam Distribution | Symmetrical direct illumination | ||
| CCT | Adjustable 1,000 - 10,000K | ||
| Colour Gamut | Performance enhanced | ||
| CRI | 92 | ||
| Lamp Life | L70 up to 50,000 hours | ||
