Hang Force Kit for Color Force and Studio Force II Plus 48 and 72
Brilliant mounting for Color and Studio Force II Plus 48 and 72
Brilliant mounting for Color and Studio Force II Plus 48 and 72
The Hang Force - designed for use with their Color Force II Plus and Studio Force II Plus (48” and 72” models).

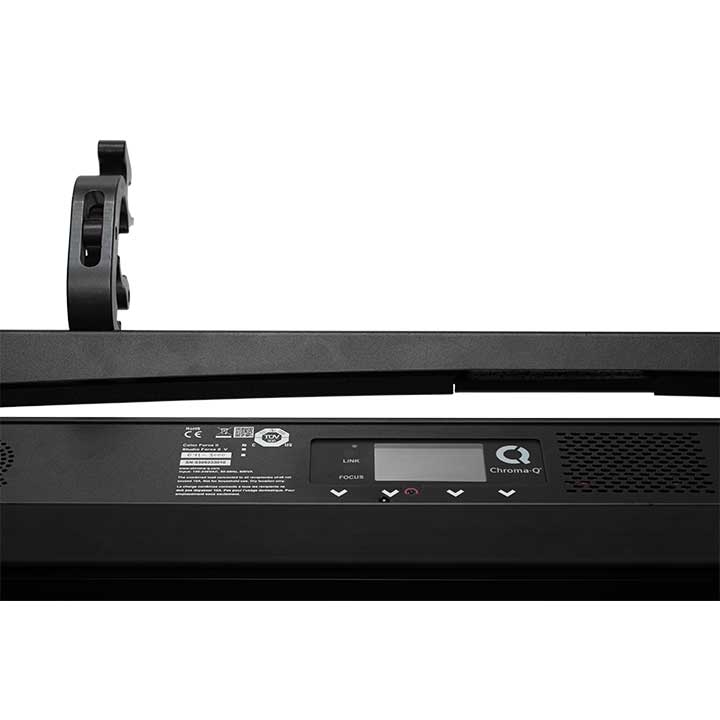

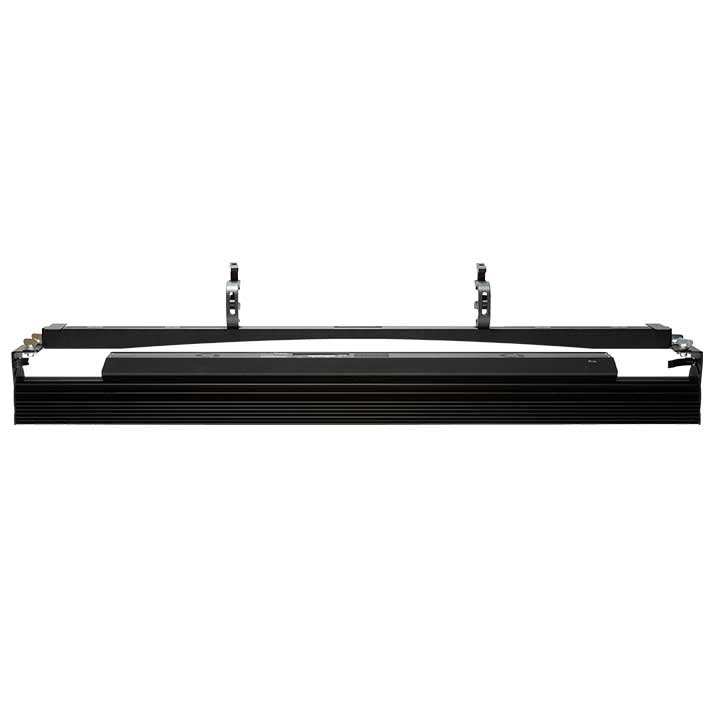

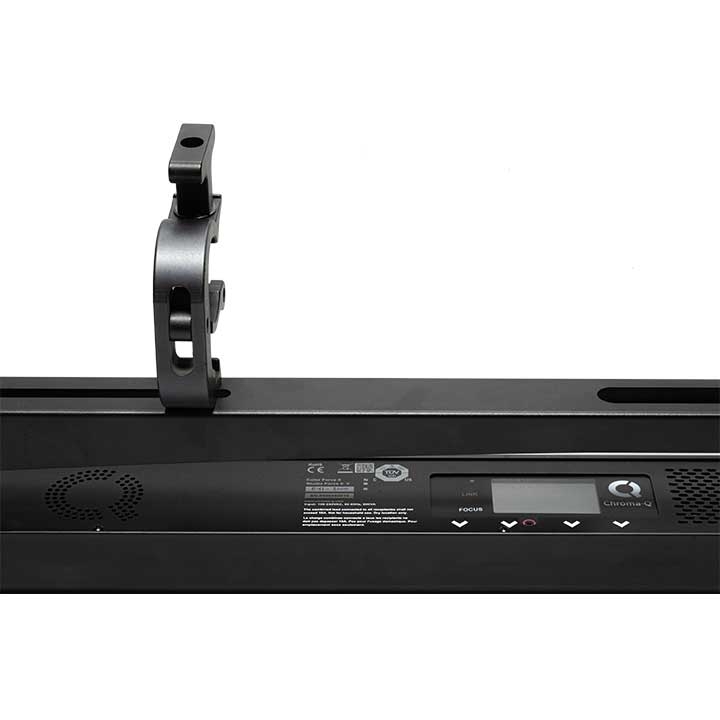

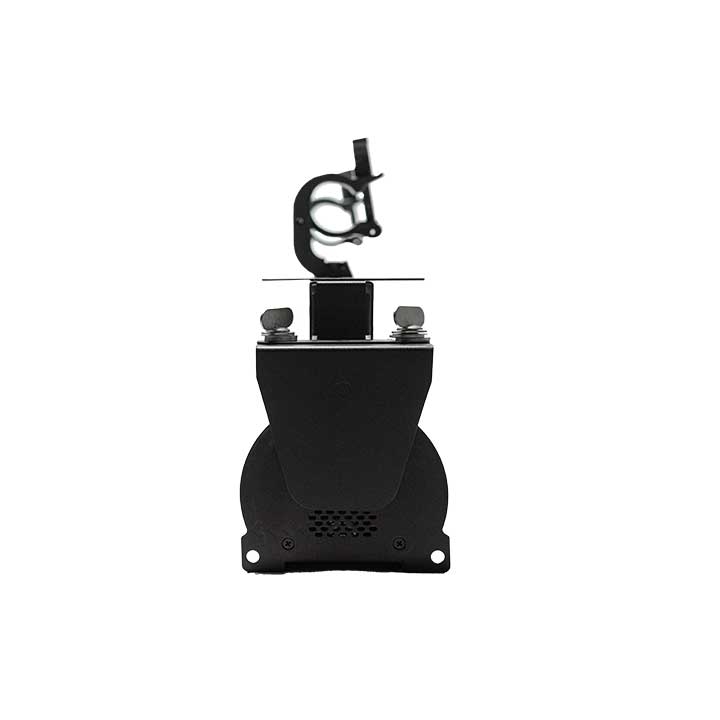

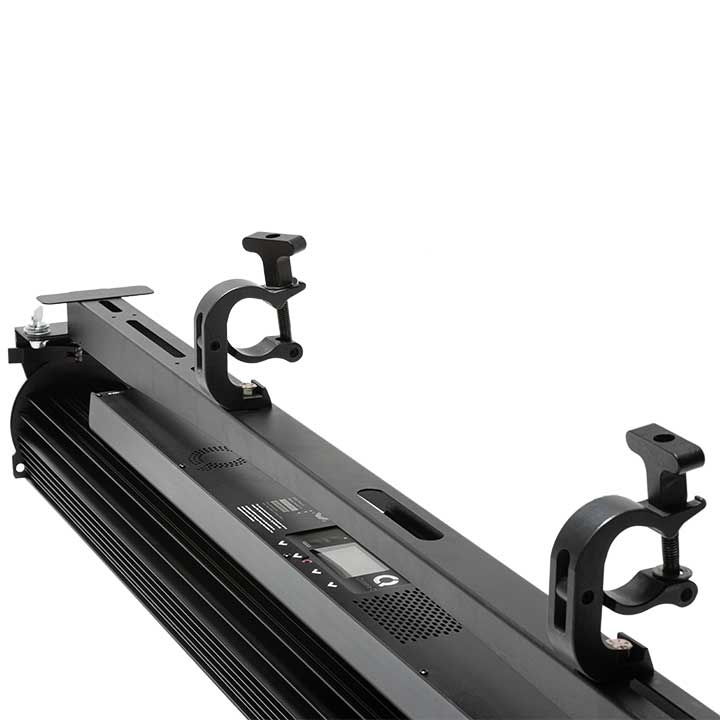

Restrictions with where you can hang the fixture on the truss due to the crossbar-section is now a thing of the past, thanks to the Hang Force bracket which allows fixtures to be hung from trusses where the position of clamps might not align with the original fixture clamp position. A series of slots allow the clamps to be re-positioned to fit anywhere on the truss pipe. For added flexibility and speedy mounting, the Hang Force uses rapid ¼ turn locks so it can quickly be installed and removed from the fixture. A centered carrying handle also means it can be moved easily. The bracket also enables all the fixture sizes in the range (12”, 48” and 72”) to hang equally side-by-side when rigged on to the truss.

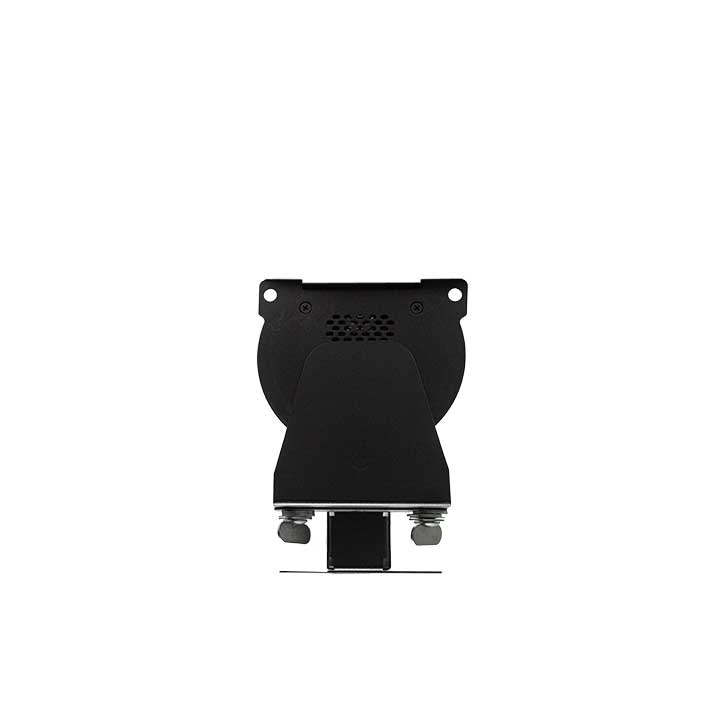

The Hang Force comes with the necessary hardware to upgrade existing fixtures for use with ¼ turn locks. The Hang Force can also be used on the floor thanks to a set of plates to stabilize the whole assembly.
Request A DemoHang Force Color/Studio Force 48 and 72 Ordering Options
Key Features:

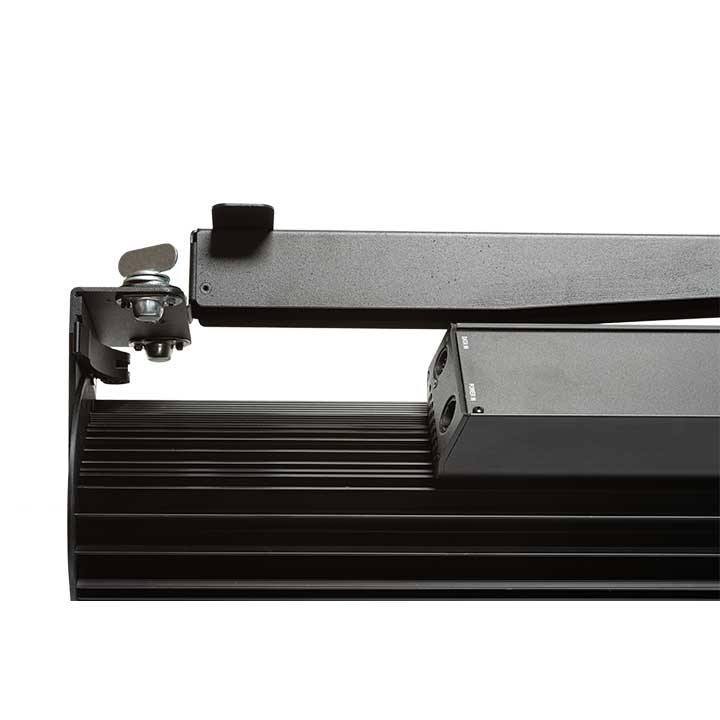

- Quarter-Turn for quick mount on the fixture

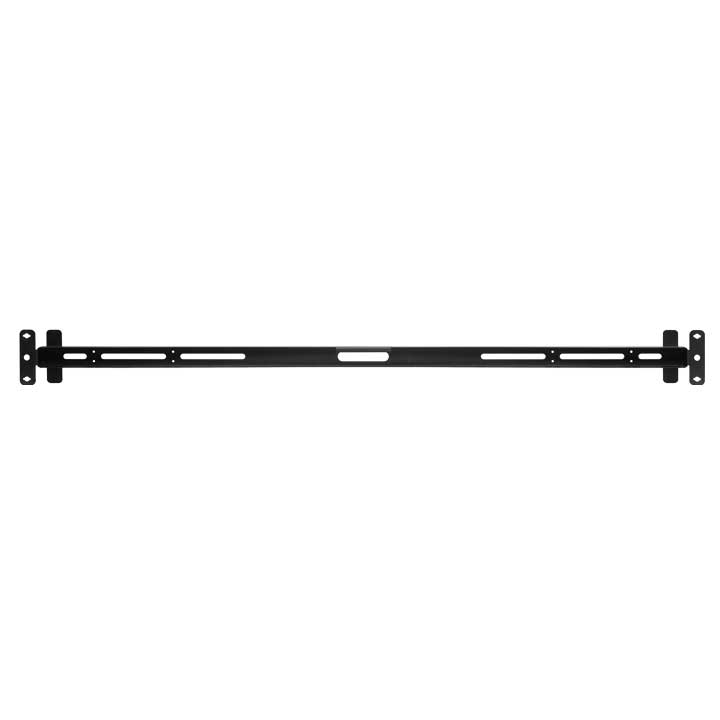

- Slotted clamp mounting holes for rigging flexibility
- Centered carrying handle to ease handling
- Upgrade kit available for existing fixture that do not have the quarter mount
It can be used for.
- Color/Studio Force II Plus
- Color/Studio Force II
- Color/Studio Force
- Color Force II and Studio Force II Accessories
- Spec Sheet for Hang Force Color/Studio Force 48 + 72
- Quick start guide for Hang Force Color/Studio Force 48 + 72
- Line Drawing Hang Force Color/Studio Force 48 (CQ641-9003)
- Line Drawing Hang Force Color/Studio Force 72 (CQ641-9103)
- Exploded Diagram Hang Force Color/Studio Force 48 (CQ641-9003)
- Exploded Diagram Hang Force Color/Studio Force 72 (CQ641-9103)
- Download All
| Product Codes: | CQ641-9003 - Hang Force Kit Color/Studio II Plus 48, Black CQ641-9004 - Hang Force Kit Color/Studio II Plus 48, White |
CQ641-9103 - Hang Force Kit Color/Studio II Plus 72, Black CQ641-9104 - Hang Force Kit Color/Studio II Plus 72, White |
| Net Dimensions - Width x Height x Depth | 1,130 X 140 X 55 mm (44.5" X 5.5" X 2.2") | 1,712 X 140 X 55 mm (67.5 X 5.5 X 2.2") |
| Net Weight | 3.5 kg (7 lb) | 4.5 kg (9 lb) |
| Shipping Dimensions - Width x Height x Depth | 1,142 X 152 X 67 mm (45" X 6" X 2.6") | 1,724 X 152 X 67 mm (68" X 6" X 2.6") |
| Shipping Weight | 4 kg (9 lb) | 5.5 kg (11 lb) |
| INSTALLATION | ||
| Mounting Points | 4 mounting points to be attached to the fixture 2 mounting points to be attached to the truss |
|
| Orientation | Horizontal | |
| Construction | Steel, powder-coated, black or white | |
| Colour | Black: RAL9005 White: RAL9016 |
|
| Built-in Hardware | Stabilizer, allows the fixture to be facing up while the hang force is mounted on the fixture. | |
