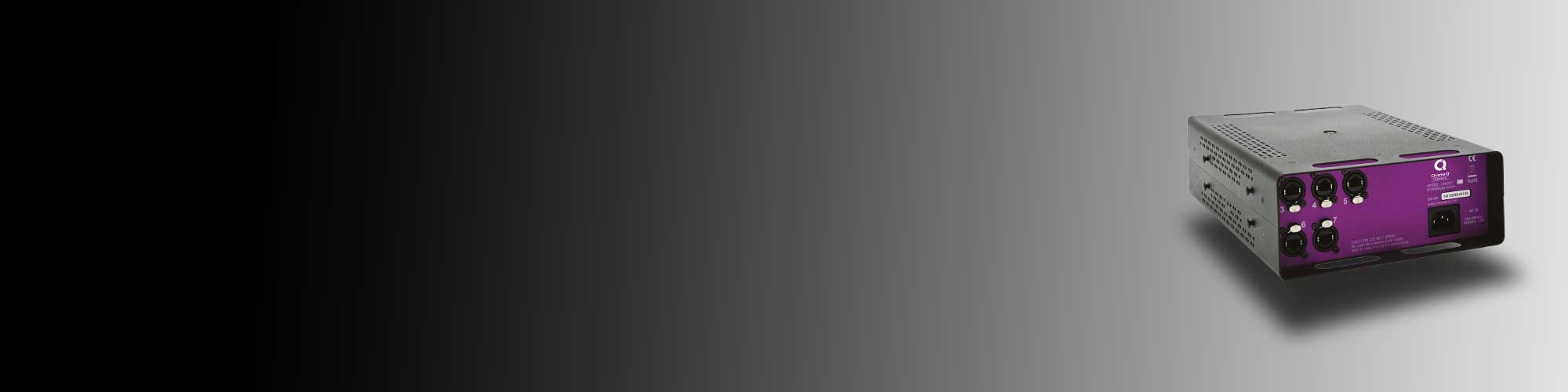

Magic Box™ EtherSwitch 7
Lighting Control & Data Distribution Solutions
- Two shielded EtherCon ports (RJ45) at the front panel
- Five shielded EtherCon ports (RJ45) at the rear panel
- Easy to see status LED for each port
- For customised front of house racks
- Unique Magic Box interlocking enclosure
- Upgradable to EtherSwitch 7F (Fibre)
Magic Box EtherSwitch 7 Ordering Options
The Chroma-Q® Magic Box™ EtherSwitch 7 is a heavy duty, high speed unmanaged network switch that supports simultaneous computer connections. Designed to satisfy the requirement of entertainment touring applications, the EtherSwitch 7 is equipped with seven shielded EtherCon ports (RJ45) providing 10 / 100 / 1000 Mbps bandwidth in full-duplex mode. This stand-alone unit enables the concurrent use of various multimedia devices within a network without traffic restrictions.
The unique Magic Box™ interlocking enclosure facilitates easy rack mounting when used in single units or pairs and easy truss mounting via captive nut insert. Rack mounting brackets are available in single unit and dual unit versions, enabling you to customise your equipment rack or your installation by mixing and matching different Magic Box™ interfaces.
- Magic Box™ EtherSwitch 7 Brochure (English)
- Magic Box™ EtherSwitch 7 Spec Sheet
- Magic Box™ EtherSwitch 7 User Manual
- Magic Box™ EtherSwitch 7 Quick Start Guide
- Magic Box™ EtherSwitch 7F Upgrade Kit Quick Start Guide
- Magic Box™ EtherSwitch 7 CAD Symbol
- Magic Box™ EtherSwitch 7 Declaration of Conformity
- Download All
- Product code: CHES07
- A: 220mm / 8.6"
- B: 88mm / 3.5"
- C: 280mm / 11"
- Weight: 3.5kg / 7.8lbs
- Power: 100-240V AC, 50 / 60Hz, 15W, IEC chassis male
- Ethernet switch type: Intelligent store & forward
- Ethernet protocols: All IEEE 802.3
- RJ45 / EtherCon port: Shielded 10BaseT / 100BaseTX / 1000BaseT
- RJ45 / EtherCon: Auto-negotiation
- RJ45 / EtherCon MDI/MDIX: Auto-crossover
- RJ45 / EtherCon TD & RD polarity: Auto-polarity
- MAC addresses supported: 8192
- VLAN supported: 4096
- Jumbo frame support: Up to 9.6K
- Buffer memory: 144 Kbytes
- Memory bandwidth: 16 Gbps for full wire speed on all ports
- Forwarding rate: 10 Mbps : 14,880pps, 100 Mbps : 148,81pps, 1000 Mbps : 1488,1pps
- Port connection: Link and activity LED
- Colour: Black
