Home Magic Box™ 8 Way Buffer

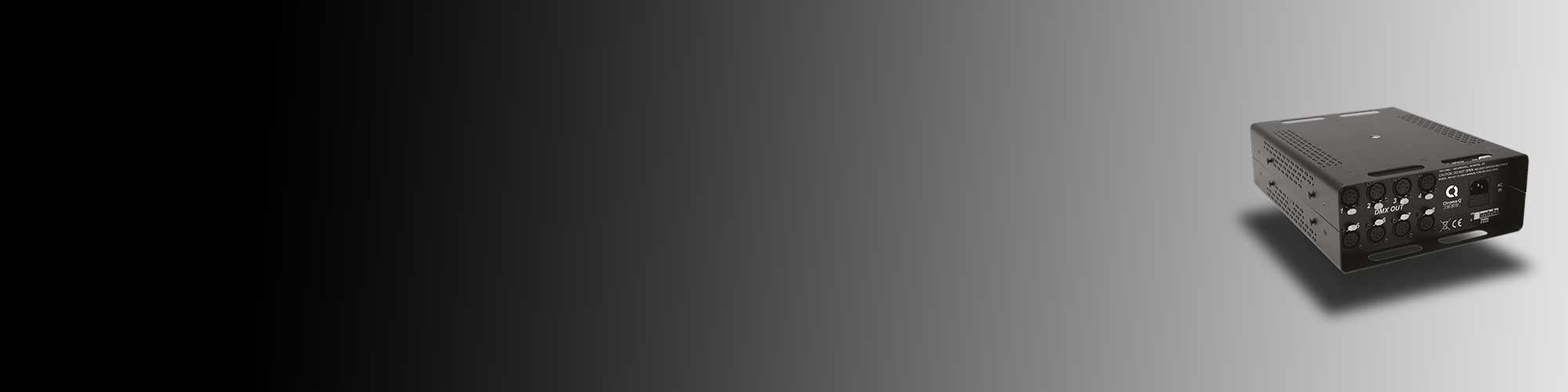

Magic Box™ 8 Way Buffer

Lighting Control & Data Distribution Solutions

The Chroma-Q® Magic Box™ 8 Way DMX Buffer box is a fault tolerant, self-healing DMX buffer designed to fully isolate all outputs from each other. Supplied with 8 x 5 pin connectors, each output is separately generated and boosted from the original DMX signal. The unit also features a termination switch. The unique Magic Box interlocking enclosure facilitates rack mounting when used in pairs and truss mounting via captive nut insert.

Key Features

  • Fault tolerant, self healing, DMX buffer
  • Supplied with 8 x 5 pin XLR connectors
  • Each output is separately generated
  • Through connector and termination switch
  • Unique Magic Box interlocking enclosure
  • Designed for customised front house racks

Request A Demo

Magic Box 8Way Buffer Ordering Options

The device shall be a fault tolerant, self healing DMX buffer designed to fully isolate all outputs from each other. The device shall fit customised front of house racks.

FEATURES

• Fault tolerant, self healing DMX buffer designed to fully isolate all outputs from each other.
• Supplied with 8x5 pin XLR connectors.
• Each output is separately generated and boosted from the original DMX signal.
• Through connector and termination switch.
• Unique Magic Box interlocking enclosure facilitates rack mounting when used in pairs and truss mounting via captive nut insert.
• Designed for customised front of house racks.
• Built-in termination.

  • Product code: CHMBDMX8
  • A: 220mm / 8.6"
  • B: 88mm / 3.5"
  • C: 280mm / 11"
  • Weight: 2.7kg / 6lbs
  • Power: 100-240V, 50/60Hz, 15W, IEC chassis male
  • DMX connector: XLR5 in, out and through
  • CHMBEAR: Pair of Magic Box rack ears
