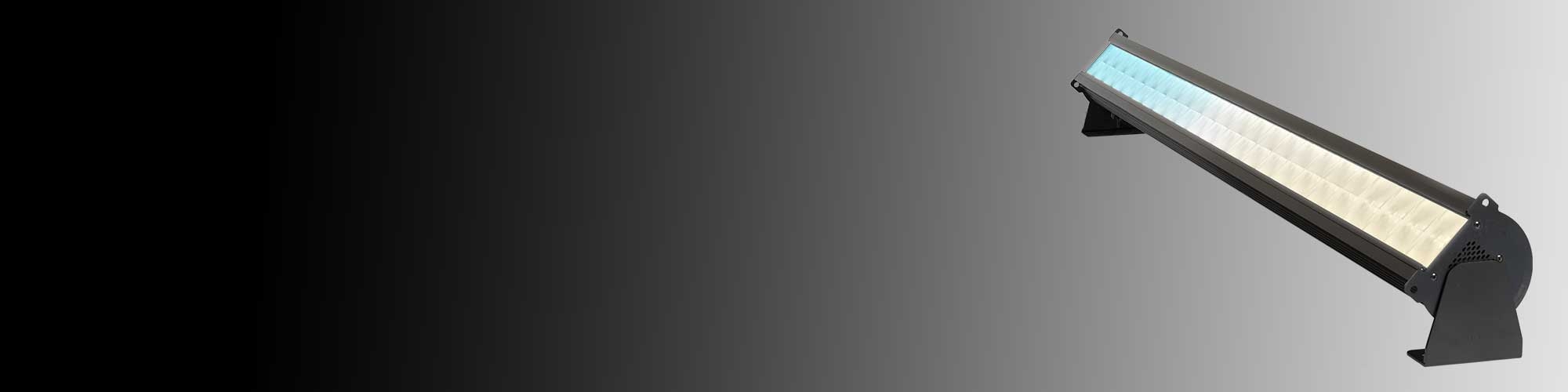

Studio Force II 72™
The Natural Choice for LED Studio Lighting
This product was discontinued in March 2024. Please visit https://chroma-q.com/products/studio-force-ii-plus for replacement products
Using a homogenised LED source capable of delivering variable colour temperature, plus/minus green shift control, and the ability to produce deep saturated colours when needed, the Studio Force II is specifically designed for TV Broadcast and film applications but also performs particularly well in other situations demanding high quality tuneable white light such as touring key lights, exhibitions, corporate events, and theatre lighting.
The Studio Force II™ uses the same ColorSure™ technologies found in other innovative Chroma-Q fixtures to deliver consistent colour across fixtures.
Patents Pending.
Key Features
- Full-spectrum variable white light engine
- High-intensity homogenised output
- Extremely smooth uniform wash
- Variable plus / minus green shift
- Ideal for TV, Broadcast, and Film
- PowerCON TRUE1 input and output for easy
daisy chaining of fixture
Studio Force II™ 72 Ordering Options
Plus / Minus Green Shift
Tuneable white LED fixtures produce light typically ranging from cool white (~6,500K CCT) to warm white (~2,800K CCT) by following the black body locus.
Chroma-Q's plus/minus green shift control allows designers to vary hue by moving along the green–magenta axis orthogonal to the colour temperature axis in accurately defined increments. This gives exceptional ability to control atmosphere and ambience on screen.
Chroma-Q® ColorSure™
The inherent variation between individual LED emitters means colour can vary from fixture to fixture. Chroma-Q's ColorSure™ is a proprietary system to ensure fixtures within the same product range provide consistent output regardless of when they are manufactured.
A complex range of processes for selecting (binning) individual LED emitters; calibrating LED light engines in-house to a uniform standard and sophisticated firmware and software ensures exceptional fixture to fixture consistency.
Features
Studio Force II™ has a coloured touch display for easy navigation through the addressing, modes, and settings. Power and DMX / RDM data through connections, optional wireless LumenRadio CRMX connection. Tool-less tilt adjustment allowing side-by-side fixture placement without any gap.
Accessories
Chroma-Q® offers a range of optional accessories for Studio Force II™ to tailor for any lighting situation. Accessories simply slide through the mounting slots. Cyc/border lenses can be used with other accessories.
- Studio Force II 72™ Brochure (English)
- Studio Force II 72™ Reference Guide
- Color Force II and Studio Force II Accessories
- Studio Force II 72™ Spec Sheet
- Studio Force II 72™ Architectural Specifications
- Studio Force II 72™ User Manual V1.2
- Chroma-Q Studio Force II DMX Layout rev_d
- Studio Force II 72™ Quick Start Guide
- Studio Force II 72™ Radio Installation Guide
- Studio Force II 72™ Firmware Adr. V2.4 Eng. V3.5
- Studio Force II 72™ Exploded Diagram
- Studio Force II 72™ Line Drawing
- Studio Force II 72™ IES v1.0

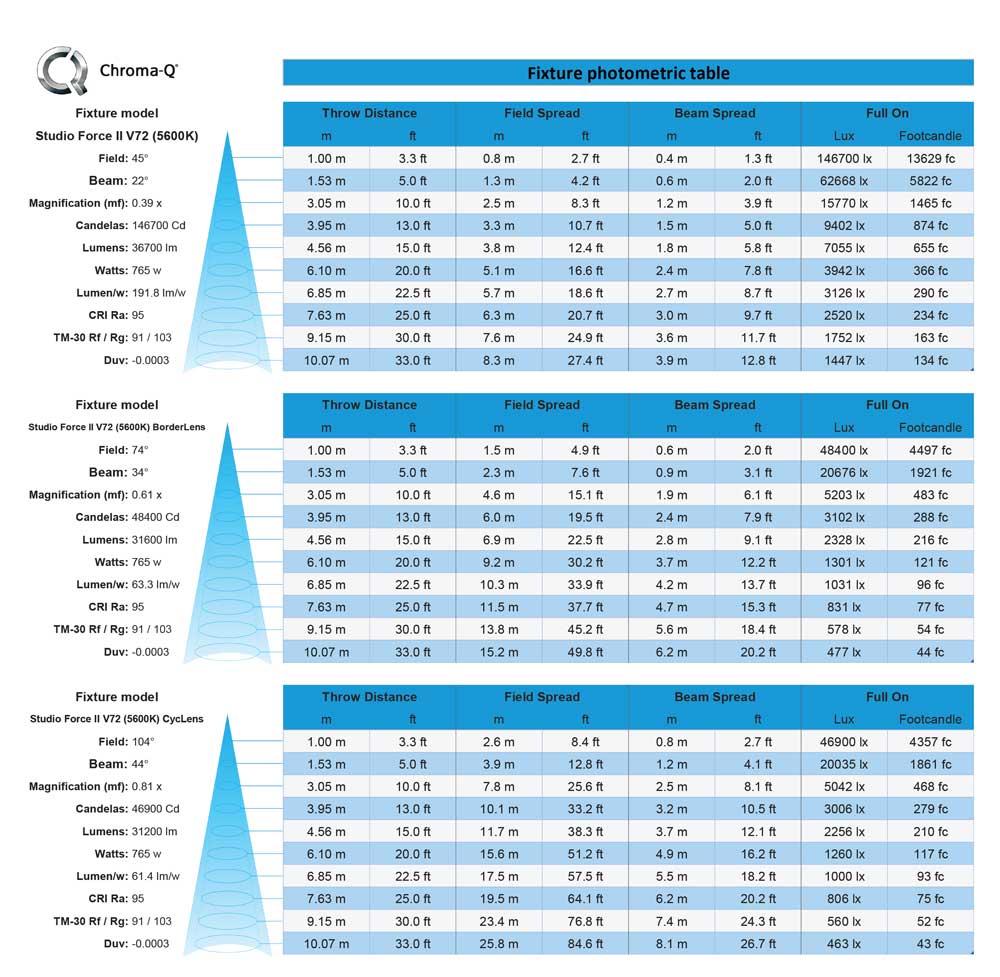

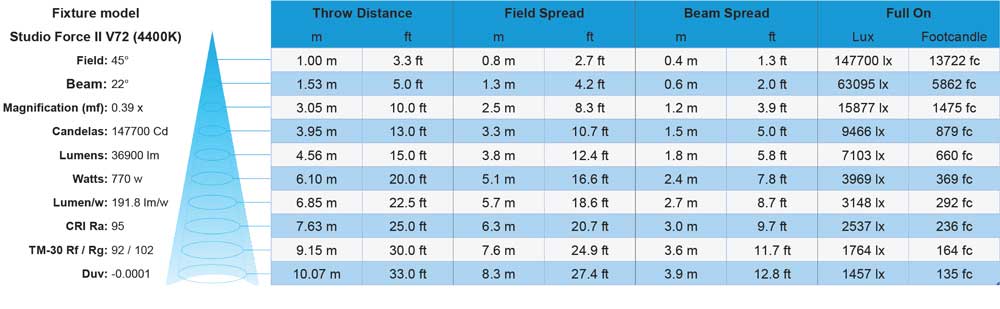

- Studio Force II 72™ Photometric Table v 3-27-22
- Studio Force II 72™ CAD Symbol
- Studio Force II 72™ 2D Symbols DWG
- Studio Force II 72™ 3D Symbols DWG
- Chroma-Q VectorWorks Symbols
- Studio Force II™ Declaration of Origin
- Studio Force II™ Declaration of Conformity
- Studio Force II 72™ Technical Bulletin
- Download All
| Studio Force II 72 | |
| Product Code | CHSF2V72 - Black |
| CHSF2V72W - White | |
| CHSF2V72LR - Black with LumenRadio | |
| CHSF2V72LRW - White with LumenRadio | |
| Net Dimensions | 1,759mm x 165mm x 191mm / 69.25'' x 6.5'' x 7.5'' |
| Net Weight | 24kg / 53lb |
| Shipping Dimensions | Length: 1,855mm / 73" / Width: 305mm / 12" / Height: 320mm / 12.5" |
| Shipping Weight | 27 kg / 60 lbs |
| Power Supply | Built-in |
| Power Input Rating | 100-240V AC 50-60Hz 800VA |
| Power Factor | 0.97 @ 120V AC |
| 0.92 @ 240V AC | |
| Power Consumption | 800W @ 120V AC |
| 800W @ 240V AC | |
| Idle Power Consumption | 44W @ 120V AC |
| 46W @ 240V AC | |
| Typical Power & Current | Measurements done with all LEDs at maxi- mum intensity. Measurements made at nominal voltage. Allow for a deviation of +/- 10% |
| Power Connectors In/Out | Neutrik powerCON TRUE1 |
| Data Connectors In/Out | Neutrik XLR 5-pin |
| Control Protocol | ANSI E1.11 USITT DMX 512-A |
| Cooling System | Combined convection and forced air - 2 fan |
| Operating Temperature | 0°C to 40°C |
| Construction | Anodised aluminium extrusion |
| Colour | Black / White |
| Built-In Hardware | Quick release lever for tilt adjustment |
| IP Rating | IP20 |
| Approvals | CISPR 32:2015 / EN 55032:2015, CISPR 24:2010/EN 55024:2010, IEC 60598-2-17:1984 + A1:1987+A2:1990 used in conjunction with IEC 60598-1: 2008 (Seventh Edition) FCC Part 15 Subpart B:2015 & ICES-003:2016 CSA C22.2 No. 166:2015-06 UL 1573:2003/ R:2014-01 |
Standard Beam Angle

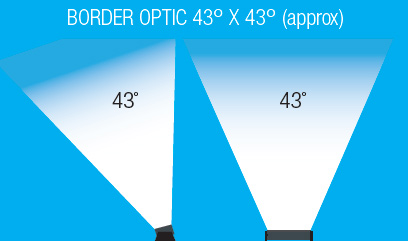

Border Optic Beam Angle

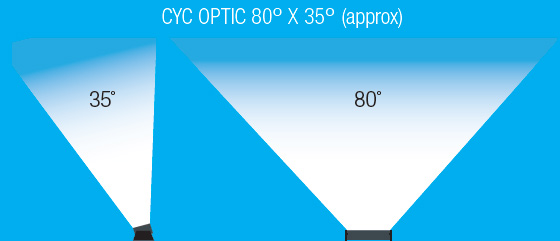

Cyc Optic Beam Angle
Chroma-Q Studio Force II™
