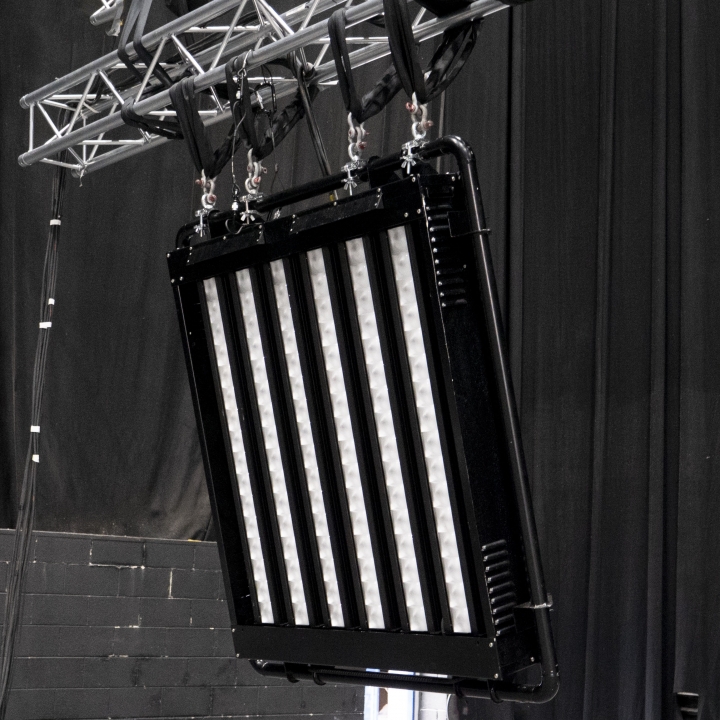

Brute Force™ 6
Revolutionary LED Quarter Wendy Light Alternative
Brute Force has been designed to ensure optimal functionality across a variety of applications*.
Robustly designed and fully dimmable, the Brute Force utilizes multiple Chroma-Q Studio Force II™ 1.2m/48” length tuneable white battens with an extended CCT range between 2,000K and 10,000K.
Each unit features mappable pixel control with RDM, DMX, and optional wireless operation.
With the Studio Force II Cine-Q mode, it is possible to control Brute Force as a variable CCT and an RGB-W mode at the same time and even crossfade from a white point to a saturated color.
Brute Force is available in 6-lamp (Brute Force 6) and 4-lamp (Brute Force 4) options. Brute Force 6 has onboard multi-point fixings to allow easy rigging and the option to combine units to form larger arrays - such as combining four units to create comparable output to a full Wendy light. Brute Force 4 is supplied with a yoke and standard TV spigot for conventional rigging.
In addition, the Studio Force II 48™ fixtures can be removed from the Brute Force mounting frames and used for other film wash and effects lighting applications.Request A Demo
Brute Force 6 Ordering Options
- Realistic LED alternative to the traditional quarter 'Wendy' light
- Significantly reduced energy consumption - draws just 15 amps @ 240V
- No downtime due to lamp failures
- Produces tuneable whites, as well as pastel and saturated colours (2,800K - 6,500K / 2,000K - 10,000K extended CCT)
- Pixel mapping to generate 'effects' - e.g. fire & lightning
- Full creative control from a lighting desk or media server

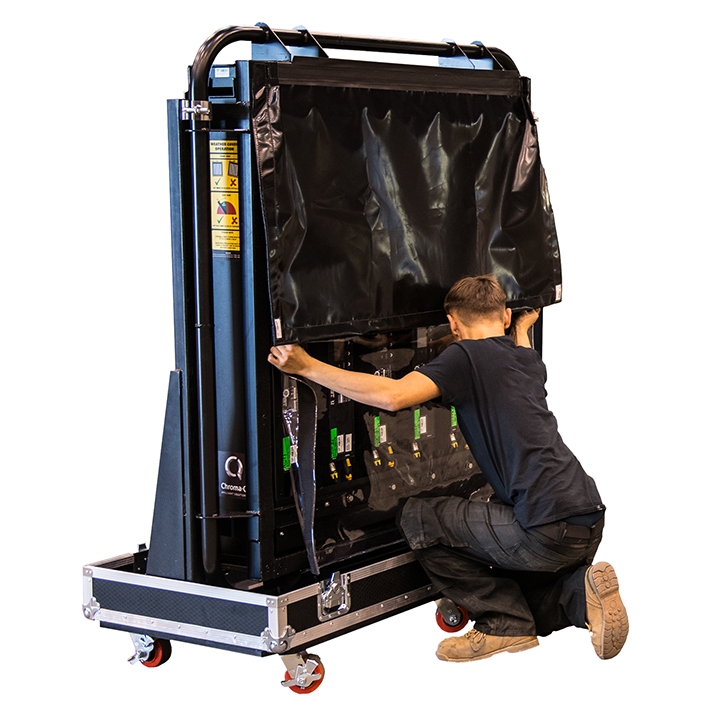

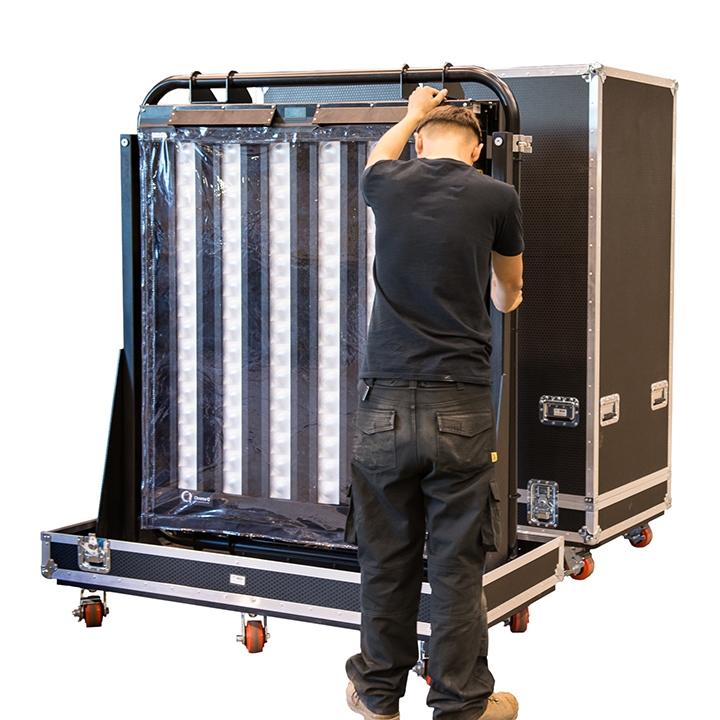

INCLUDED WEATHER COVER ACCESSORY
*To provide an additional level of protection when using Brute Force outdoors or in studio-simulated weather conditions, the fixture must be fitted with the Weather Cover accessory and used in accordance with the operation instructions provided. Always consult the product manual for full details. Additional precautions should be taken to protect the fixture when operated in severe weather conditions.
- Brute Force™ Brochure
- Color Force II and Studio Force II Accessories
- Brute Force 6™ Assembly Guide v2
- Studio Force II 48™ User Manual V1.2
- Chroma-Q Studio Force II DMX Layout rev_d
- Studio Force II 48 Software v2.3 Eng v3.0 a

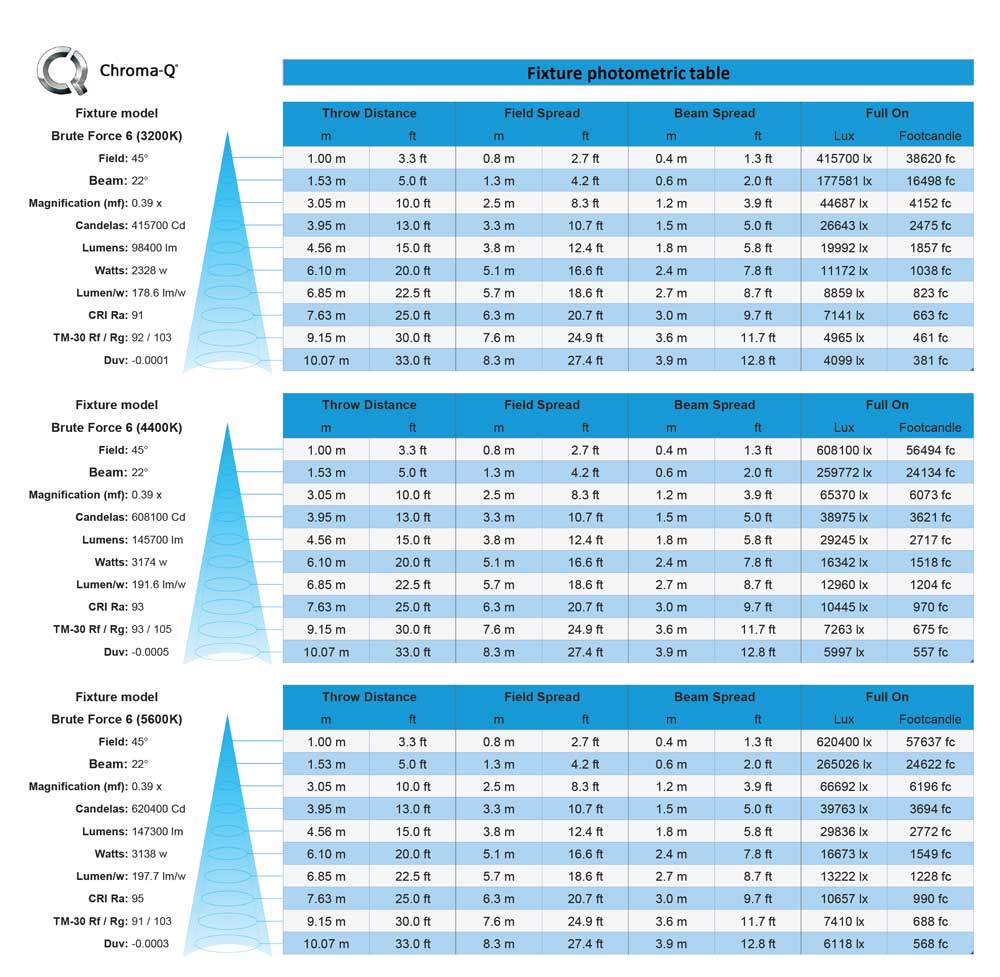

- Brute Force 6™ Photometric Table v3-27-22
- BruteForce6 2D Symbols DWG
- BruteForce6 3D Symbols DWG
- Chroma-Q VectorWorks Symbols
- Download All
|Brute Force 6
(x6 Studio Force II 48 fixtures)
|CCT||Adjustable 2,800K - 6,500K|
|CRI||Up to 94|
|MIRED SHIFT (+/-GREEN)||+2 / -2 Green shift (KHi mode)|
|HOT LUMEN OUTPUT (APPROX MAX.)||144,000 lm|
|PIXEL MAPPING||96-Way Control|
|DIMMING||Ultra Smooth Dimming|
|NET DIMENSIONS (Including stirrup) (LxHxD)||1480mm x 1640mm x 320mm / 58.27" x 64.57" x 12.60"|
|WEIGHT (approx)||175kg / 386lbs|
|POWER CONSUMPTION (MAX.)||6 x 550W = 3300W|
|CONNECTIONS||Power 6 x Neutrik powerCON
Data 6 x Neutrik XLR 5 - pin
|Description||Brute Force 6|
|Brute Force Hybrid power & data cable||MULPCTM/X5SM-PCTF/X5SFDHD-1.6|
|Brute Force DMX link cable||MUCX5SD1-1.6|
