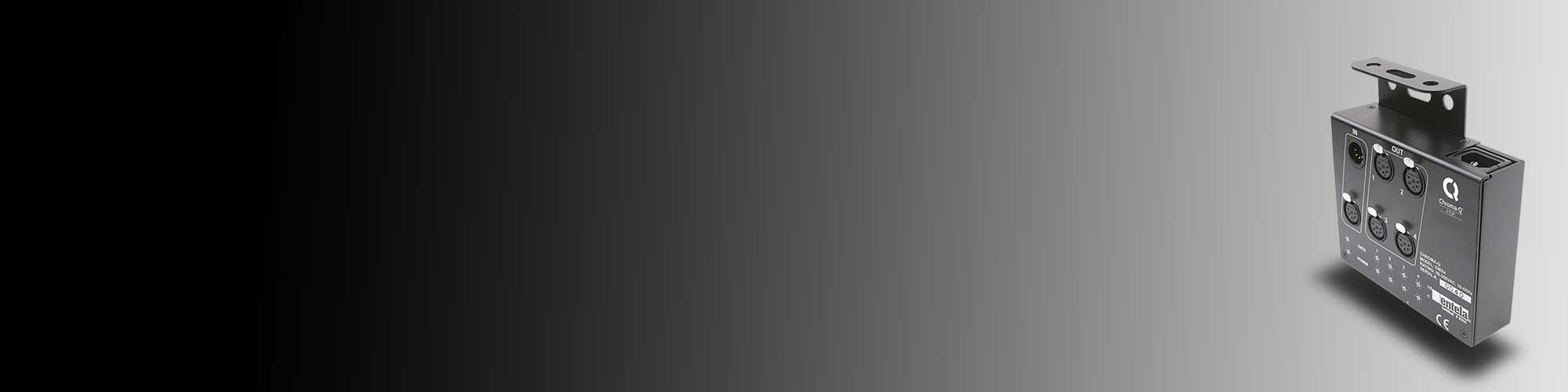

Chroma-Q® 4Play™
This product was discontinued in April 2024.
The Chroma-Q® 4Play™ is a fault-tolerant, self-healing 4-way DMX buffer designed to fully isolate all outputs from each other. Supplied with 4 x 5 pin connectors, each output is separately generated and boosted from the original DMX signal. The 4Play is suitable for truss mounting with a normal hook clamp and will work with mains voltages worldwide. It also features a chassis-mounted IEC male to assist with international cabling.
Request A Demo4Play Ordering Options
Part Number: CHDMX4
The Chroma-Q® 4Play™ is a fault-tolerant, self-healing 4-way DMX buffer designed to fully isolate all outputs from each other.
FEATURES
• 4-way DMX buffer.
• Fault-tolerant, self-healing.
• Each output is fully isolated.
• 4 x 5 pin XLR connector outputs.
• 1 x 5 pin XLR connector input and through.
• Each output is separately generated and boosted from the original DMX signal.
• Data and power indicators.
• Suitable for truss mounting with a normal hook clamp.
• Will work with mains voltages worldwide (100-240V, 50/60Hz).
• Supplied with a chassis mounted IEC male to assist international cabling
| Product code | CHDMX4 |
|---|---|
| A | 148mm / 5.9" |
| B | 158mm / 6.3" |
| C | 40mm / 1.6" |
| Weight | 0.6kg / 1.3lbs |
| Power connector | 100-240V 50/60Hz, 15W, IEC chassis male |
| DMX connector in/out | XLR5 |
| DMX connector out | XLR5 |
| DMX connector thru | XLR5 |
