Color Force II 12™

Cyc, Wash & Effects LED Lighting which Changes the Game Again

This product was discontinued in March 2024. Please visit https://chroma-q.com/products/color-force-ii-plus for replacement products

From the makers of one of the most popular professional cyc lights, Chroma-Q® does it again: the multi-award-winning Color Force II™, a batten that delivers formidable output and superior colour blending, all with smooth, even coverage. With four powerful homogenised cells per foot/305mm, these units can be grouped and controlled to release your creativity. Unsightly colour shadowing is eliminated with this innovative optical system that gives enough power to light nearly 12m of cyclorama. Perfect for a wide range of cyclorama, flood, and wall washing applications where a powerful throw is needed. Available in 1.8m / 6 ft, 1.2m / 4 ft, and 0.3m / 1 ft versions, these fixtures are specifically designed to fit in flight cases used with the original Color Force™.

Key Features

  • Featuring Chroma-Q's proven award-winning technology
  • Over 3,600 hot lumens
  • Extremely smooth, uniform output
  • Homogenized RGBA colour mixing
  • Pixel control to 76mm/3in increments
  • High CRI of 92
  • Theatrical grade dimming
  • Rugged extruded aluminium body
  • Built-in power supply
  • Chroma-Q calibration means: superior fixture-to-fixture consistency
  • Works great in any theatre, TV, concert touring, exhibitions, or corporate event
  • Optional internal LumenRadio
  • Touchscreen user interface

Request A Demo

Color Force II™ 12 Ordering Options

Homogenised Output – Superior Colour Blend & No Unsightly Colour-Mixing Shadows
Using the very latest fully homogenised optics found in the popular Chroma-Q® Color One 100™ product range, the Color Force II™ fixtures' output is a single, clean and pure beam of light, delivering a superior colour blend with no unsightly colour-mixing shadows.

The homogenised optics and improved Chroma-Q® technology provide even higher quality saturates and pastels, and a purer white - all from a single source.

Theatrical Grade Dimming
Theatrical grade dimming emulates the extremely smooth dimming curve of tungsten fixtures.

Colour Consistency
Factory calibration ensures all Color Force II units are colour matched, so side by side they will be outputting consistently the same colour unit to unit, regardless of the batch of LEDs used or when the unit was manufactured.

Even More Creative Control
The new models also provide more creative control, with twice as many light engines accommodated within the same fixture lengths – providing independently controllable cells every 3 inches.

At least 50% Brighter
In addition, advances in LED production methods, combined with Chroma-Q's proprietary technologies, enable the Color Force II solutions to deliver at least 50% more output compared to their predecessors – now capable of lighting up to a 12m cyc or surface.

Extensive RDM functionality is provided through wired, or the optional LumenRadio CRM.

  Color Force II 12
Product Code CHCF212RGBA - Black
CHCF212RGBALR- Black with LumenRadio
CHCF212RGBALRW - White with LumenRadio
Net Dimensions 335mm x 190mm x 218mm / 13.2" x 7.5" x 8.6"
Net Weight 5kg / 11.2lb
Shipping Dimensions 432mm x 343mm x 279mm / 17" x 13.5" x 11"
Shipping Weight 7kg / 15.5lb
Power Supply Built-in
Power Input Rating 100-240V AC, 50-60 Hz, 160VA
Power Factor 0.99 @ 120V AC,
0.97 @ 240V AC
Power Consumption 133W @ 120V AC,
133W @ 240V AC
Idle Power Consumption 8W @ 120V AC,
10W @ 240V AC
Typical Power & Current Measurements done with all LEDs at maximum intensity. Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Power Connectors In/Out Neutrik powerCON TRUE1
Data Connectors In/Out Neutrik XLR 5-pin
Control Protocol ANSI E1.11 USITT DMX 512-A
Cooling System Forced
Operating Temperature 0°C to 40°C
Construction Anodised aluminium extrusion
Colour Black
Built-In Hardware Quick release lever for tilt adjustment
IP Rating IP20
Approvals CISPR 22 :2006/EN55022 :2006 & CISPR 24 :1997/EN55024 :1998, ICES-003 :2004 & FCC Part 15 Subpart B: 2007, CSA C22. No. 166-M1983:R2008 UL 1573:2003; UL 8750



  Color Force II 12
LED Engines 4
Hot Lumen Output (Combined) 3,600
Control Modes RGBA, RGB, HSI, Look Sel, Master, x4, x2 , x1 , Odd /Even
Dimming Curve Theatrical
Variable Effects Engine Strobe, Strobe on Top, Strobe Random
Optics Fully homogenised
Beam Angle 22° (approx.)
Beam Angle With Optional Cyc Optic 80° x 35° (approx.)
Beam Angle With Optional Border Optic 43° (approx.)
Beam Distribution Asymmetrical direct illumination
CCT 1,000K - 10,000K
Colour Gamut Performance enhanced
CRI 92
Lamp Life L70 at 50,000 hours
  • CHCFSA12: Spigot Adaptor for Force 12
  • CHCFLBA12: Lightbank Adaptor (Speedring) for Force 12
  • CHCFZH12: Zip Hood for Color Force 12
  • CHCFBL12: Border Lens for Color Force 12
  • CHCFCL12: Cyc Lens for Color Force 12
  • CHCFECL12: Egg Crate Louvre for Color Force 12 - Black
  • CHCFHTH12: Half Top Hat for Color Force 12 - Black
  • CHCFBD12: Barndoor for Color Force 12 - Black
  • CHCFTH12: Top Hat for Color Force 12 - Black
  • CHUSBLOADER2: Chroma-Q Uploader
  • CHCFDBX - Diffuser Box for Force 12 Black
  • CHCFDBXW - Diffuser Box for Force 12 White
  • CHCFTH12: Top Hat for Force II 12
  • CHCFLB12: Lightbank For Force 12 (requires CHCFLBA12 Lightbank Adapator (Speedring) for Force12)

Color Force II 12™

PDF Download

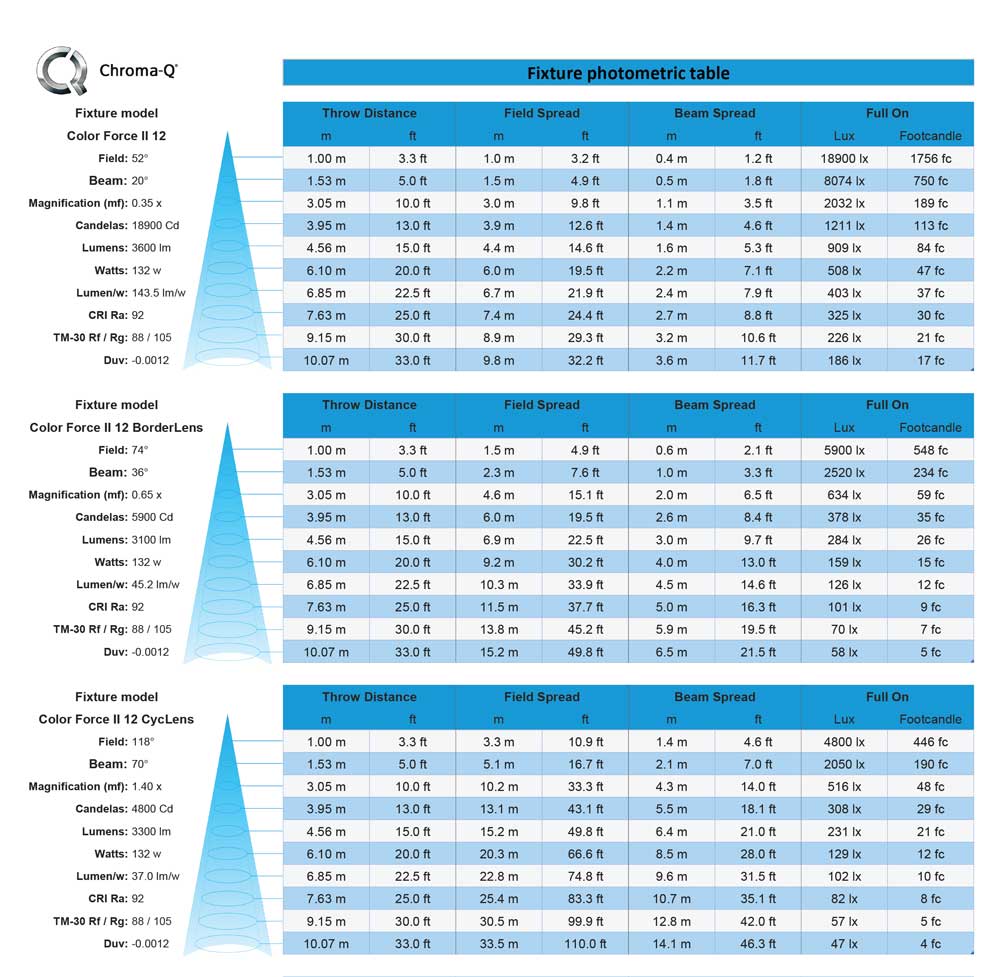

Photometrics Color Force II 12
