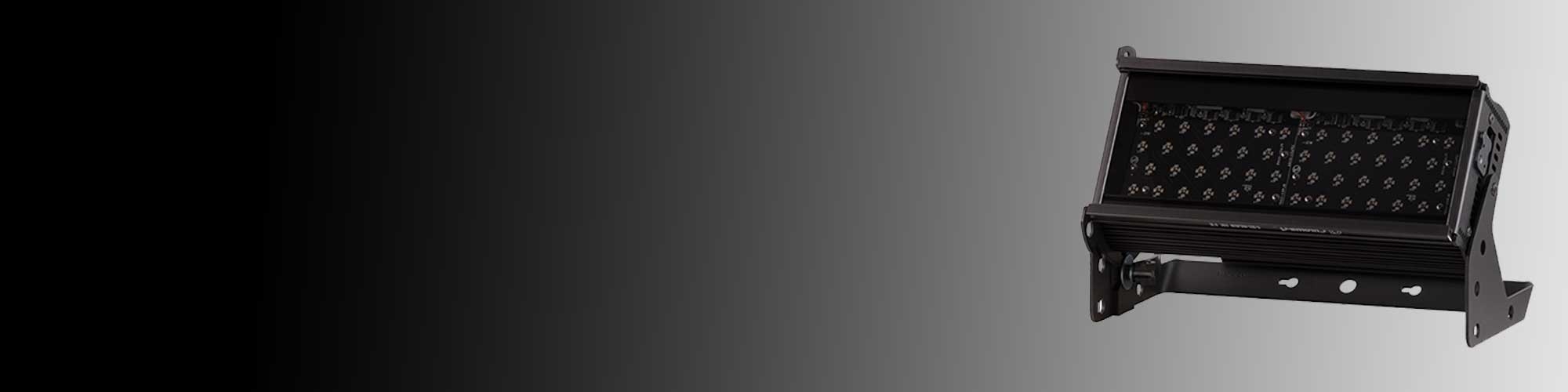

FxForce IR™ 12
Energy efficiency for LED infra red lighting applications.
Please note this item was discontinued in January 2022.
The new Chroma-Q® FxForce IR™ 12 is a Infra-red lighting fixture which utilizes the same core innovative LED technologies found in the Color Force™ range to provide a brilliant IR light ideal for infrared filming and night mode video. Successfully used in the Film and TV market, it can be used in many other applications including image capturing photography. Designed for practicality, the unit is equipped with a manual control mode and a range of optional accessories.
Request A DemoFxForce IR™ 12 Ordering Options
Brilliant IR light for Infrared filing and night video mode
Extremely smooth, uniform wash
Theatrical grade dimming
Ideal for TV and film
335mm / 1ft* length ideal for floor, wall or truss mounting
Camera friendly
PowerCon input and output for easy daisy chaining of fixtures
Broad range of accessories available
Flat end plates for seamless washing
Built-in power supply
Hidden quick release fixings
Rugged extruded aluminum body
| Product Code | CHFXIR12 |
| Net Dimensions (Without Fixings - delete if not appropriate) - Width x Height x Depth |
335mm x 190mm x 219mm / 13.2" x 7.5" x 8.6" |
| Net Weight (Without Fixings) | 4.4kg / 9.6lbs |
| Shipping Dimensions - Width x Height x Depth |
432mm x 343mm x 279mm / 17” x 13.5” x 11” |
| Shipping Weight | 6kg / 13lbs |
| Power & Connections | |
| Power Supply | Built-in |
| Power Input Rating | 100-240V AC, 50-60 Hz, 160VA |
| Power Factor | 0.9 |
| Power Consumption | 110W (maximum intensity); 6W (stand-by) |
| Typical Power & Current | Measurements done with all LEDs at max. intensity. Measurements made at nominal voltage. Allow for a deviation of +/- 10%. |
| Power Connectors In/Out | powerCon |
| Data Connectors In/Out | XLR 5-pin |
| Max cable run | N/A |
| Control Protocol | ANSI E1.11 USITT DMX 512-A |
| Cooling System | Forced - 1 fan |
| Operating Temperature | 0°C to 40°C |
| Construction | Black anodised aluminium extrusion |
| Colour | Black |
| Built-In Hardware | Quick release lever for tilt adjustment |
|
Wavelength
|
940nm
|
| IP Rating | IP20 |
| Approvals | CISPR 22:2008/EN55022 :2010 & CISPR 24 :2010/EN55024 :2010, ICES-003 :2004 & FCC Part 15 Subpart B: 2010, CSA C22. No. 166-M1983:R2008 UL 1573:2003 |
| LED Engines | 2 |
| LEDs Per Engine | 24 x LED IR |
| Total LEDs | 48 |
| Control Modes | 1 channel Dim1x, 1 channel Look sel, Mastr StndAlon, Slave StndAlon, Manual |
| Dimming Curve | N/A |
| Variable Effects Engine | N/A |
| Effects Parameters | N/A |
| Hot Lumen Output (Combined) | N/A |
| Red | N/A |
| Green | N/A |
| Blue | N/A |
| Amber | N/A |
| Optics | N/A |
| Beam Angle | N/A |
| Beam Angle With Optional Cyc Optic |
N/A |
| Beam Angle With Optional Border Optic |
N/A |
| Beam Distribution | N/A |
| CCT | N/A |
| Colour Gamut | N/A |
| CRI | N/A |
| Lamp Life | L70 at 50,000 hours |
