Space Force onebytwo™

Soft white lighting fit for any space

The Chroma-Q® Space Force onebytwo™ is a cost-effective, bright, high-quality variable white LED soft light panel that is a modern replacement for traditional soft sources used in TV studios, live broadcasts, film, vlog, video conferencing rooms, conference rooms, and photographic applications.

Request A Demo

Space Force onebytwo Ordering Options

Key Features

High-quality, pure, diffused soft lighting
Variable white - 2,800K - 6,000K
Smooth, soft uniform beam
Up to 13,800 lumens
Convection cooling for quiet operation
Lightweight (8.5kg / 19lbs) with built-in power & dimming
Standard 12” x 25” size, 1:2 ratio fits small spaces
Variable PWM flicker-free operation
Wireless DMX (optional) / RDM
Chroma-Q’s proven LED performance

Featuring 15 years of LED innovation and our award-winning Space Force™ LED space / soft light technologies, the onebytwo is the ideal fit for standard room ceiling height studios and small spaces.

The panel’s 1x2 ratio and compact dimensions enable it to be mounted side-by-side in either ratio, overhead, or on a wall, to create a huge volume of light in a small space.

Highly efficient and natively single-source, the onebytwo is CCT variable between 2,800K and 6,000K and has an output of up to 13,800 lumens. The fixture provides high colour rendering indexes, which are requirements for light sources used in the film and TV industry to ensure accurate colour rendering.

Convection cooling provides quiet operation for studios and a cooler working environment, as well as reducing air conditioning needs to further boost your energy savings.

With manual & remotely controllable LED frequency up to 96,000Hz, the onebytwo ensures flicker-free operation. Extensive RDM functionality is provided through wired, or the optional LumenRadio CRMX, connections.

The lightweight design only 6.5 kg /14.3 lb (Without Yoke); 8.5kg / 19lbs (With Yoke) incorporates all power & control electronics, making it quick and easy to set up. Built to last, the onebytwo requires minimal maintenance and retains colour consistency between units owing to our LED emitter inspection and proprietary ColorSure™ LED calibration system.

Optional accessories include a hanging offset bracket, 4-way bridle, and a full range of beam control accessories.

	Space Force onebytwo
Product Codes	CQ647-2000 Chroma-Q Space Force onebytwo with yoke (black)
	Discontinued: CQ647-2500 Chroma-Q Space Force onebytwo with yoke and LumenRadio Installed (black)
	Discontinued: CQ647-2005 Chroma-Q Space Force onebytwo with yoke (white body)
	Discontinued: CQ647-2505 Chroma-Q Space Force onebytwo with yoke and LumenRadio Installed (white body)
Net Dimensions (WxHxD)	631mm X 313mm X 208mm / 25” X 12” X 8”
Net Weight	6.5 kg /14.3 lb (Without Yoke) 8.5kg / 19lbs (With Yoke)
Shipping Dimensions	737 mm x 406 mm x 280 mm / 29” x 16” x 11"
Shipping Weight	10kg / 22lbs
Power Supply	Built-in
Power Input Rating	100-240V AC 50-60Hz 218VA
Power Factor	0.977 @ 120V AC
Power Factor	0.928 @ 230V AC
Power Consumption	204W @ 120V AC
Power Consumption	204W @ 230V AC
Idle Power Consumption	9W @ 120V AC
Idle Power Consumption	10W @ 230V AC
Max Sound Level (Decibel)	35.48 db
Idle Sound Level (Decibel)	32.37 db
Typical Power & Current	Measurements done with all LEDs at maximum intensity. Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Power Connectors In/Out	Neutrik powerCON TRUE1
Data Connectors In/Out	Neutrik XLR 5-pin male and female
Control Protocol	DMX
Operating Temperature	0°C to 40°C
Construction	Powder coated Aluminium
Colour	Black
Built-In Hardware	Frame Holder
IP Rating	IP20
Approvals	CISPR 22 :2006/EN55022 :2006 & CISPR 24 :1997/EN55024 :1998, ICES-003 :2004 & FCC Part 15 Subpart B: 2007. CSA C22. No. 166-M1983:R2008 UL 1573:2003; UL 8750

* Preliminary specs

	Space Force onebytwo
Control Modes	INT-CCT, INT-CCT-EXTENDED
Dimming Curve	Theatrical

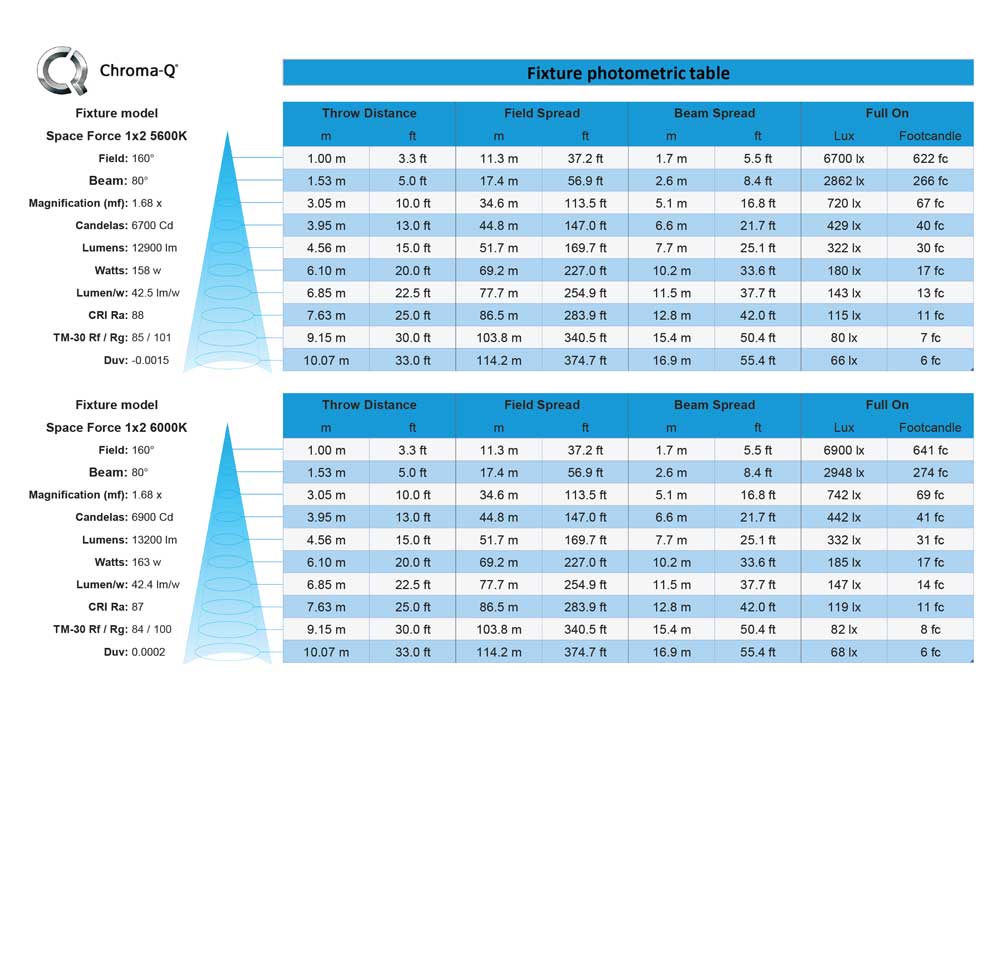

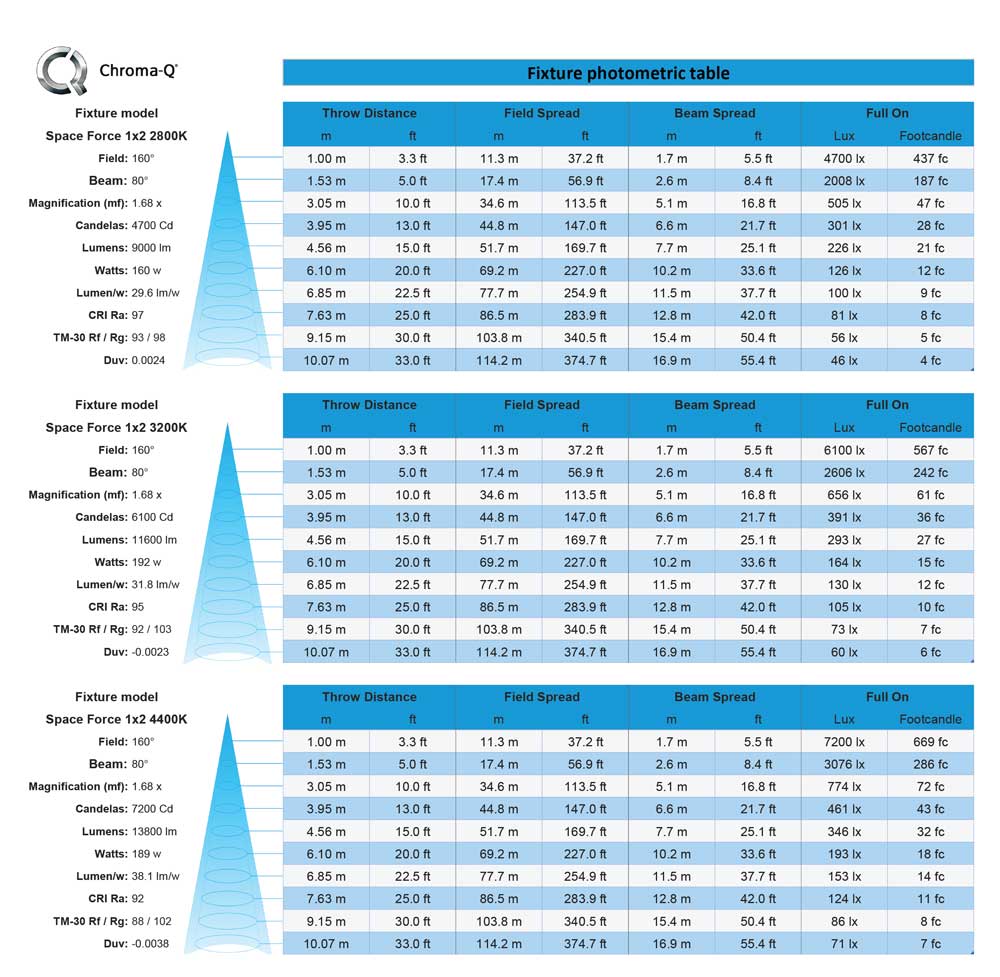

Hot Lumen Output (Combined)	@ 2,800K: 9,009 lm, @ 4,400K: 13,808 lm, @ 6,000K: 13,290 lm
Luminance	800Lux / 74fc @ 3M / 9.8ft
Optics	Fully homogenised lenses
Beam Angle	80° (approx)
Beam Distribution	Symmetrical Direct Illumination
CCT	Adjustable 2,800 - 6,000K
CRI & TLCI	Up to 97
TM-30-18	Up to Rf 94, Rg 100
SSI	Up to 87
Lamp Life	L70 at 50,000 hours

* Preliminary specs

CHSPFSY Space Force Compl. Manual Offset Yoke with Hardware, BK
CQ647-9013 Space Force Yoke Hardware Kit only for (without Yoke and Plates and Spigot)
CQ647-9014 Mounting Plate for Space Force Yoke (CHSPFSY) Kit (W/O Yoke, W/O Hardware)
CQ647-9015 Space Force Compl. Manual Low Profile Offset Yoke (included with Hardware)
CQ647-9020 Space Force onebytwo™ Pole operated yoke
CQ647-9080 Space Force onebytwo™ Protective Lens (replacement) (1 included with fixture)
CQ647-9001 Space Force onebytwo™ Barn Door Black
CQ647-9002 Space Force onebytwo™ Barn Door White
CQ647-0511 Space Force onebytwo™ Bridle Four Way
CQ647-9025 Space Force onebytwo™ Gel Frame
CQ647-9030 Space Force onebytwo™ Pop Bank with Full and Half Front Screen
CQ647-9035 Space Force onebytwo™ EZ Pop Soft Egg Crate Grid for EZ Pop Bank
CQ647-9040 Space Force onebytwo™ Soft Egg Crate 8 Cell 7” Deep 40 Degree 1x2 Grid
CQ647-9045 Space Force onebytwo™ Soft Egg Crate 2” Deep 40 Degree 1x2 Grid
CQ647-9070 Space Force onebytwo™ RF Lumenradio Kit (User Installed)
CH889-9006 Cable 12/3 5-15P (Male Edison) to PowerCON TRUE1® SJTOOW Adapter 6'
