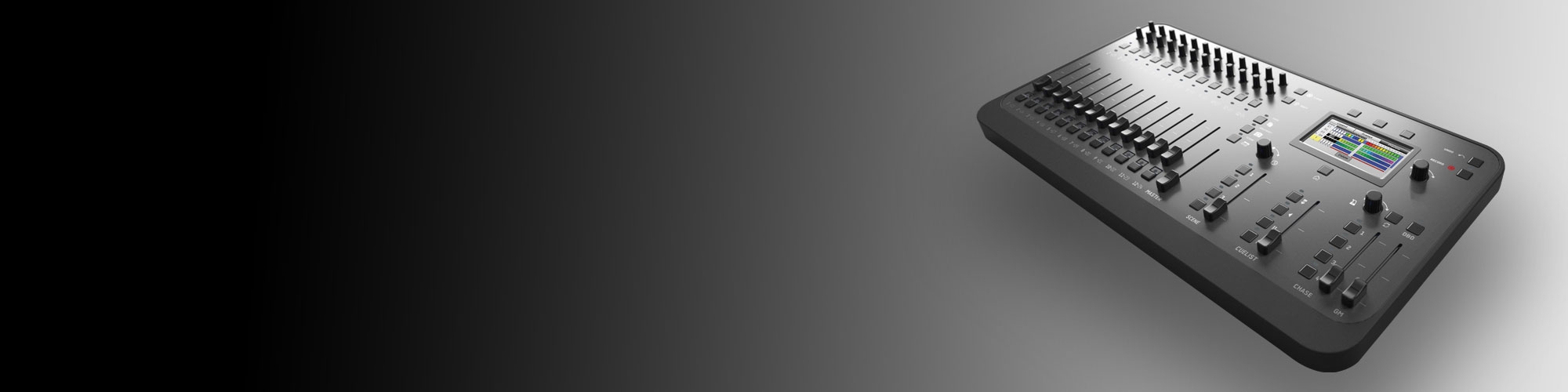

STAGE CL by Chroma-Q Control Console

Compact Lighting Console

The Stage CL by Chroma-Q is a lighting control console intended for the control of intensity-only fixtures and multi-colour LEDs. It has been specifically designed and optimised for easy control of full-colour LED fixtures for all users from beginners to the advanced professionals. Intended for use by rental companies, corporate event suppliers, schools, community theatres, and Houses of Worship, the Stage CL is suitable where full control of up to 24 LED and/or in-tensity-only fixtures is required.

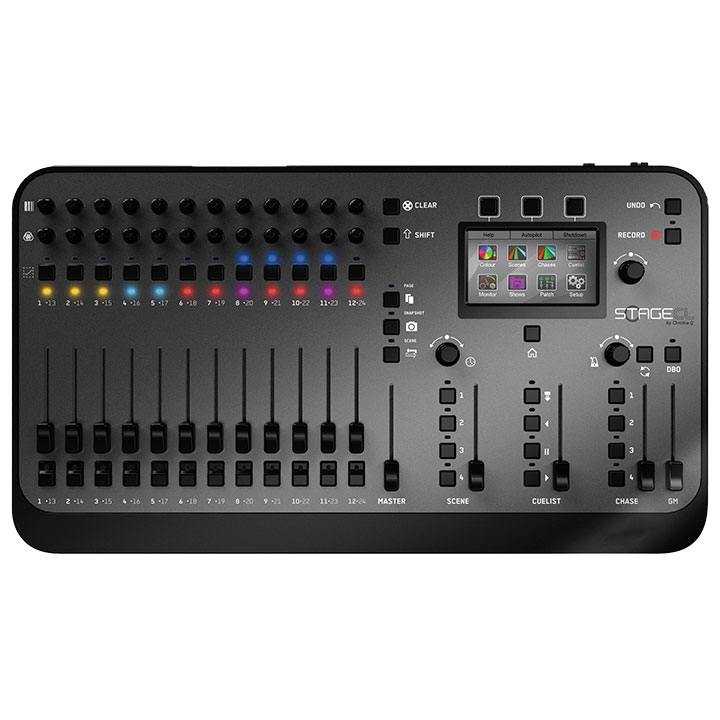

The Stage CL includes 12 fixture control channels complete with intensity fader, Hue and Saturation controls, select button, and full colour RGB mimic LED. Additionally, a limited number of noncolour parameters can be controlled, for example "strobe" and "zoom".

The Stage CL includes dedicated scene, chase, and cuelist controls to provide immediate access to those facilities. Extensive use has been made of multicolour LED indicators to provide console feedback. Programming is based around an integrated full-colour TFT LCD touch screen.

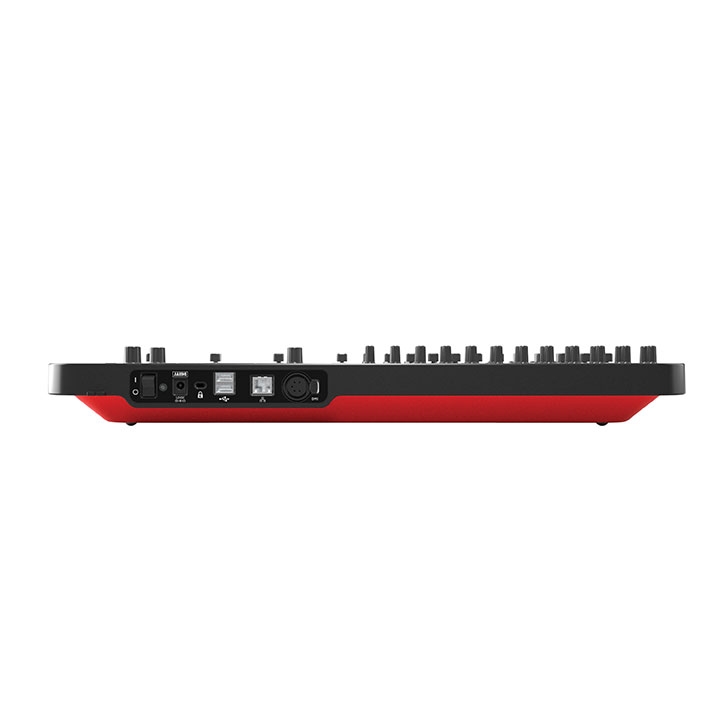

The Stage CL includes a DMX port, an Ethernet port for use with Artnet and sACN receivers, and USB ports for use with standard
USB FLASH drives.

Request A Demo
  •
  • Dedicated colour controls per fixture
  • 24 Fixtures in two pages of 12*
  • Integrated RGB mimic LED per channel
  • Single Preset operation
  • Dedicated scene controls
  • Dedicated cuelist and controls
  • One-touch chase programming
  • Both single-colour and striped Presets
  • Dedicated chase controls and flexible operation modes
  • Fixtures libraries can be built on the console
  • Software Updatable without opening the chassis
  • DMX-512 and Ethernet (Artnet, sACN) output
  • 480x272 pixel TFT graphics touchscreen
  • Audio trigger from inbuilt microphone
  • Tap synchronisation of chases
  • Backup to USB Flash drive
  • Spreadsheet style patch
  • Multiple colour fan modes
  • High-speed ARM9 processor
  • Universal input DC power supply
  • Ethernet port including indicator LEDs
  • Storage for multiple shows in the console
  • Power switch and indicator LED
  • Integrated cable retention
  • Kensington lock point
  • VESA mount enables mounting on standard monitor arms
  • Integrated carry handle

* Value does not include multi-patched fixtures

Power supply 12VDC +/-10% 2A
Power consumption 24W max
Mains connector 5.5/2.1mm coaxial DC power socket
Processor Atmel ARM9
DRAM 128MB
FLASH 256MB
Ambient temperature 0°C – 40°C
Graphics Display 4.3 inch (480x272) TFT
Touchscreen Resistive
Maximum Fixtures 24*
DMX512 5 pin XLR
Ethernet 100Mbit RJ45
USB Two Type A High Speed
Dimensions 520 x 300 x 70 mm
Net / Shipping weight 4.5 / 6.3kg

* Value does not include multi-patched fixtures

Part Number: CQ1524-1000 - STAGE CL by Chroma-Q Control Console

Supplied Accessories

  • Mains PSU + IEC power cable
  • Quick start guide
