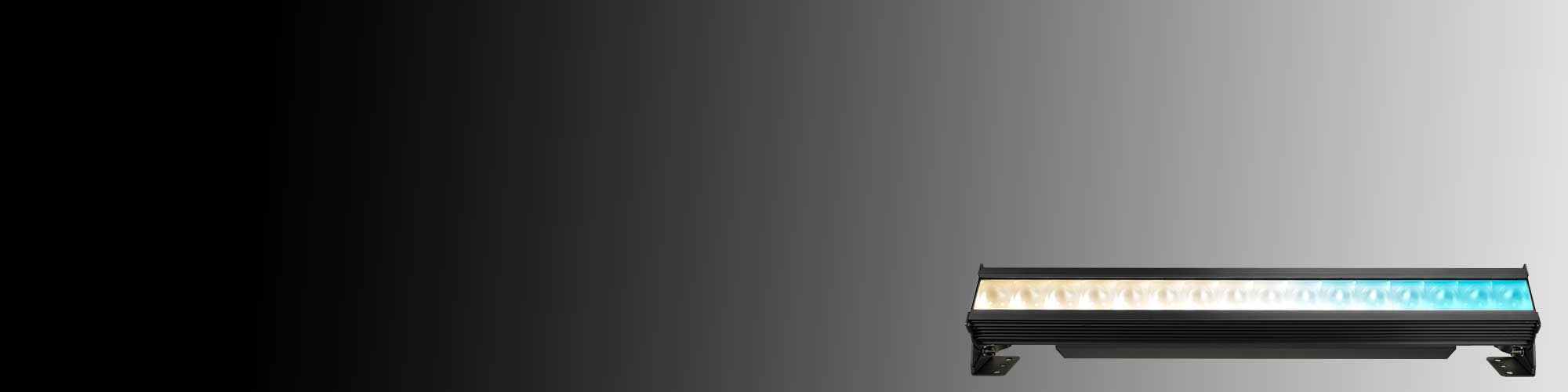

Studio Force II 48™
The Natural Choice for LED Studio Lighting
Using a homogenised LED source capable of delivering variable colour temperature, plus/minus green shift control and the ability to produce deep saturated colours when needed, the Studio Force II™ is specifically designed for TV Broadcast and film applications but also performs particularly well in other situations demanding high quality tuneable white light such as touring key lights, exhibitions, corporate events and theatre lighting.
The Studio Force II™ uses the same ColorSure™ technologies found in other innovative Chroma-Q® fixtures to deliver consistent colour across fixtures.
- Full spectrum variable white light engine
- High intensity homogenised output
- Extremely smooth uniform wash
- Variable plus / minus green shift
- Ideal for TV, Broadcast and Film
- PowerCON TRUE1 input and output for easy
daisy chaining of fixtures
Studio Force II™ 48 Ordering Options
Plus / Minus Green Shift
Tuneable white LED fixtures produce light typically ranging from cool white (~6,500K CCT) through to warm white (~2,800K CCT) by following the black body locus.
Chroma-Q®'s plus / minus green shift control allows designers to vary hue by moving along the green–magenta axis orthogonal to the colour temperature axis in accurately defined increments. This gives exceptional ability to control atmosphere and ambience on screen.
The inherent variation between individual LED emitters means colour can vary from fixture to fixture. Chroma-Q®'s ColorSure™ is a proprietary system to ensure fixtures within the same product range provide consistent output regardless of when they are manufactured.
A complex range of processes for selecting (binning) individual LED emitters; calibrating LED light engines in-house to a uniform standard and sophisticated firmware and software ensures exceptional fixture to fixture consistency.

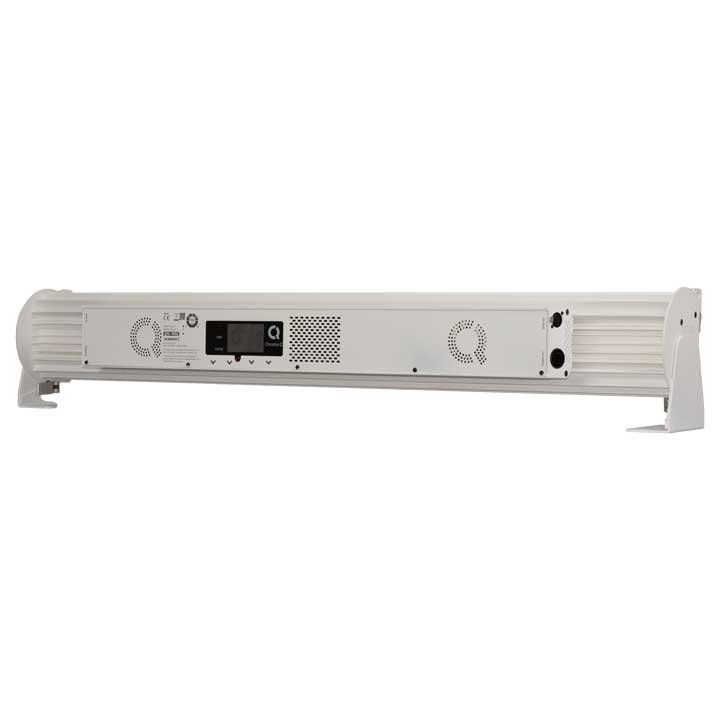

Studio Force II™ has a coloured touch display for easy navigation through the addressing, modes and settings. Power and DMX / RDM data through connections, optional wireless LumenRadio CRMX connection. Tool-less tilt adjustment allowing side-by-side fixture placement without any gap.
Chroma-Q® offers a range of optional accessories for Studio Force II™ to tailor for any lighting situations. Accessories simply slide through the mounting slots. Cyc / border lenses can be used with other accessories.
- Studio Force II 48™ Brochure (English)
- Studio Force II 48™ Reference Guide
- Studio Force II 48™ Spec Sheet
- Studio Force II 48™ User Manual
- Studio Force II 48™ Quick Start Guide
- Studio Force II 48™ Radio Installation Guide
- Studio Force II 48 Software V1.6_V2.7
- Studio Force II 48™ Exploded Diagram
- Studio Force II 48™ Line Drawing
- Studio Force II 48™ IES

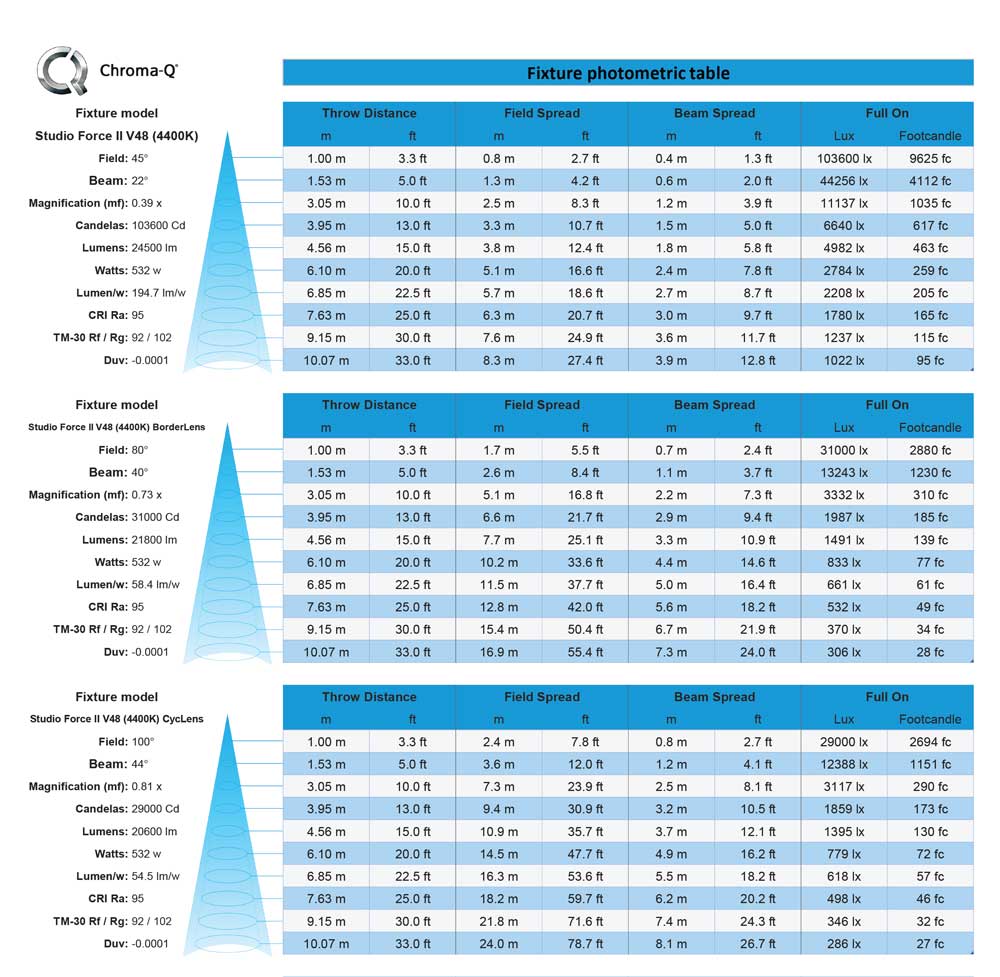

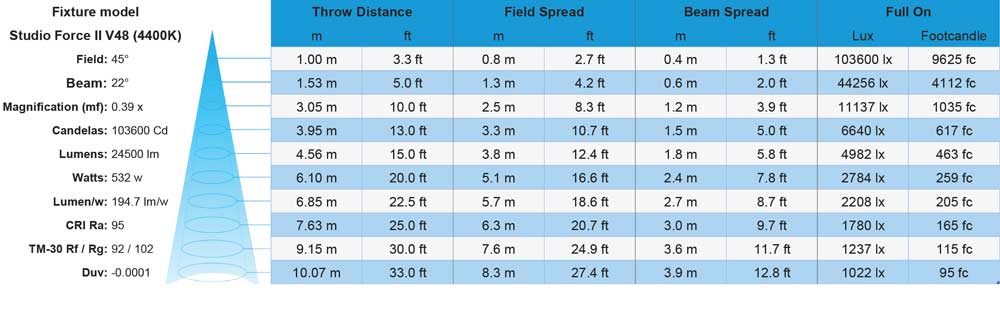

- Studio Force II 48™ Photometric Table
- Studio Force II 48™ CAD Symbol
- Studio Force II 48™ 2D Symbols DWG
- Studio Force II 48™ 3D Symbols DWG
- Download All
|Studio Force II 48|
|Product Code||CHSF2V48 - Black|
|CHSF2V48W - White|
|CHSF2V48LR - Black with LumenRadio|
|Net Dimensions||1,181mm x 165mm x 191mm / 46.5" x 6.5" x 7.5"|
|Net Weight||18 Kg / 40 lb|
|Shipping Dimensions||Length: 1,295mm / 51" / Width: 305mm / 12" / Height: 320mm / 12.5"|
|Shipping Weight||21 Kg / 46 lb|
|Power Input Rating||100-240V AC 50-60Hz 550VA|
|Power Factor||0.97 @ 120V AC|
|0.92 @ 240V AC|
|Power Consumption||550W @ 120V AC|
|550W @ 240V AC|
|Idle Power Consumption||27W @ 120V AC|
|30W @ 240V AC|
|Typical Power & Current||Measurements done with all LEDs at maxi- mum intensity. Measurements made at nominal voltage. Allow for a deviation of +/- 10%|
|Power Connectors In/Out||Neutrik powerCON TRUE1|
|Data Connectors In/Out||Neutrik XLR 5-pin|
|Control Protocol||ANSI E1.11 USITT DMX 512-A|
|Cooling System||Combined convection and forced air - 2 fan|
|Operating Temperature||0°C to 40°C|
|Construction||Anodised aluminium extrusion|
|Colour||Black / White|
|Built-In Hardware||Quick release lever for tilt adjustment|
|Approvals||CISPR 32:2015 /EN 55032:2015,
CISPR 24:2010/EN 55024:2010, IEC 60598-2-17:1984 + A1:1987+A2:1990 used in conjunction with IEC 60598-1: 2008 (Seventh Edition) FCC Part 15 Subpart B:2015 & ICES-003:2016 CSA C22.2 No. 166:2015-06 UL 1573:2003
Studio Force II 48™ (2800K)
Studio Force II 48™ (3200K)
