Studio Force II Plus™ 12

The Natural Choice for Studio Lighting

The Natural Choice for LED Studio Lighting

Brighter than ever, The Studio Force II Plus™ uses a homogenised LED source capable of delivering variable colour temperature, plus/minus green shift control, and the ability to produce deep saturated colours when needed, the Studio Force II Plus™ is specifically designed for TV Broadcast and film applications but also performs particularly well in other situations demanding high quality tuneable white light such as touring key lights, exhibitions, corporate events, and theatre lighting.

The Studio Force II Plus™ uses the same ColorSure™ technologies found in other innovative Chroma-Q® fixtures to deliver consistent colour across fixtures.

Key Features

Full-spectrum variable white light engine
High-intensity homogenised output
Extremely smooth uniform wash
Variable plus / minus green shift
Ideal for TV, Broadcast, and Film
PowerCON TRUE1 input and output for easy daisy chaining of fixtures

Note: This product replaces Studio Force II™ 12

Request A Demo

Plus / Minus Green Shift
Tuneable white LED fixtures produce light typically ranging from cool white (~6,500K CCT) to warm white (~2,800K CCT) by following the black body locus.

Chroma-Q®'s plus/minus green shift control allows designers to vary hue by moving along the green–magenta axis orthogonal to the colour temperature axis in accurately defined increments. This gives exceptional ability to control atmosphere and ambience on screen.

Chroma-Q® ColorSure™
The inherent variation between individual LED emitters means colour can vary from fixture to fixture. Chroma-Q®'s ColorSure™ is a proprietary system to ensure fixtures within the same product range provide consistent output regardless of when they are manufactured.

A complex range of processes for selecting (binning) individual LED emitters; calibrating LED light engines in-house to a uniform standard and sophisticated firmware and software ensures exceptional fixture to fixture consistency.

Features

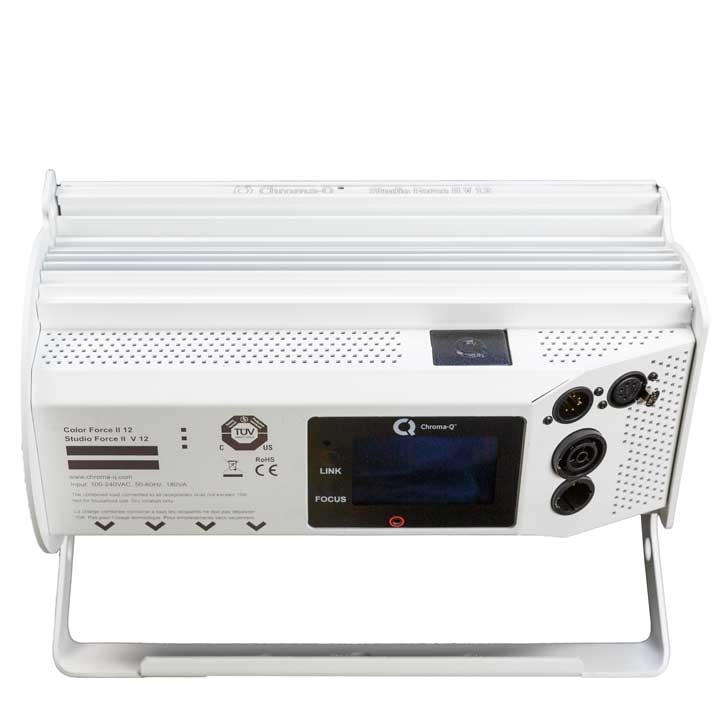

Studio Force II Plus™ has a coloured touch display for easy navigation through the addressing, modes, and settings. Power and DMX / RDM data through connections, optional wireless LumenRadio CRMX connection. Tool-less tilt adjustment allows side-by-side fixture placement without any gap.

Accessories
Chroma-Q® offers a range of optional accessories for Studio Force II Plus™ to tailor for any lighting situation. Accessories simply slide through the mounting slots. Cyc/border lenses can be used with other accessories.

	Studio Force II Plus 12
Product Code	CQ1652-1150 - Studio Force II Plus 12 w/trunnion, TRUE1 to 15-5P Cable, BK
	CQ1652-1250 - Studio Force II Plus 12 w/trunnion, TRUE1 to 15-5P Cable, WH
	CQ1652-1650 - Studio Force II Plus 12 w/trunnion, TRUE1 to 15-5P Cable, RF, BK, with LumenRadio
	CQ1652-1750 - Studio Force II Plus 12 w/trunnion, TRUE1 to 15-5P Cable, RF, WH, with LumenRadio
Net Dimensions	335mm x 190mm x 218mm 13.2" x 7.5" x 8.6"
Net Weight	5.0kg / 11.0lbs
Lumens	7,700lm @ 5600K
Shipping Dimensions	Length: 432mm / 17" / Width: 279mm / 11" / Height: 343mm / 13.5"
Shipping Weight	7kg / 15.5lb
Power Supply	Built-in
Power Input Rating	100-240V AC 50-60Hz 160VA
Power Factor	0.99 @ 120V AC
Power Factor	0.97 @ 240V AC
Power Consumption	150W @ 120V AC
Power Consumption	133W @ 240V AC
Idle Power Consumption	8W @ 120V AC
Idle Power Consumption	10W @ 240V AC
Typical Power & Current	Measurements done with all LEDs at maxi- mum intensity. Measurements made at nominal voltage. Allow for a deviation of +/- 10%
Power Connectors In/Out	Neutrik powerCON TRUE1
Data Connectors In/Out	Neutrik XLR 5-pin
Control Protocol	DMX
Cooling System	Combined convection and forced air - 1 fan
Operating Temperature	0°C to 40°C
Construction	Anodised aluminium extrusion
Colour	Black / White
Built-In Hardware	Yoke and quick release lever for tilt adjustment
Heat Load	512 BTU/Hr
IP Rating	IP20
Approvals	CISPR 32:2015 /EN 55032:2015, CISPR 24:2010/EN 55024:2010, IEC 60598-2- 17:1984 + A1:1987+A2:1990 used in conjunction with IEC 60598-1: 2008 (Seventh Edition) FCC Part 15 Subpart B:2015 & ICES-003:2016 CSA C22.2 No. 166:2015-06 UL 1573:2003/R:2014-01

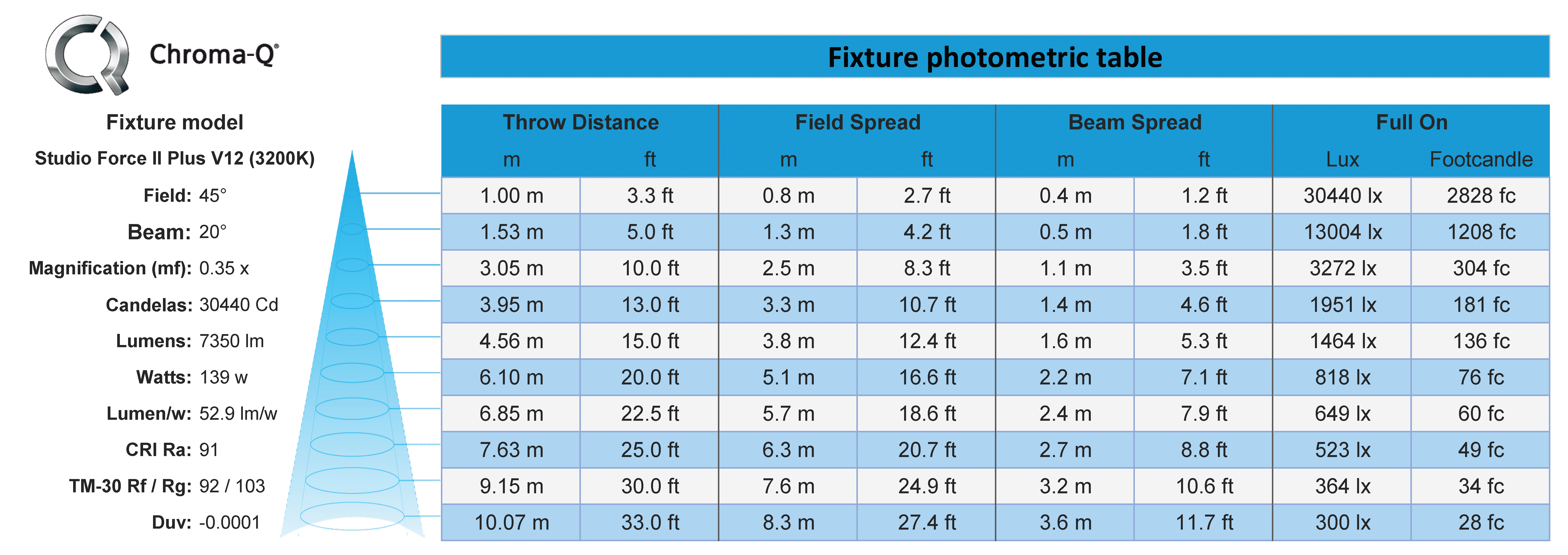

Standard Beam Angle

Border Optic Beam Angle

Cyc Optic Beam Angle

CHCFSA12: Spigot Adaptor for Force II Plus 12
CHCFZH12: Zip Hood for Studio Force II Plus 12
CHCFBL12: Border Lens for Studio Force II Plus 12
CHCFCL12: Cyc Lens for Studio Force II Plus 12
CHCFECL12: Egg Crate Louvre for Studio Force II Plus 12 - Black
CHCFHTH12: Half Top Hat for Studio Force II Plus 12 - Black
CHCFBD12: Barndoor for Studio Force II Plus 12 - Black
CHCFTH12: Top Hat for Studio Force II Plus 12 - Black
CHCFLB12: Lightbank For Force 12 (requires CHCFLBA12 Lightbank Adapator (Speedring) for Force12)
CHCFDBX - Diffuser Box for Force II Plus 12 Black
CHCFDBXW - Diffuser Box for Force II Plus 12 White
CHCFLBA12: Lightbank Adaptor (Speedring) for Force II Plus 12
