Studio One 100 V™
Above PAR Performance from a White LED Source

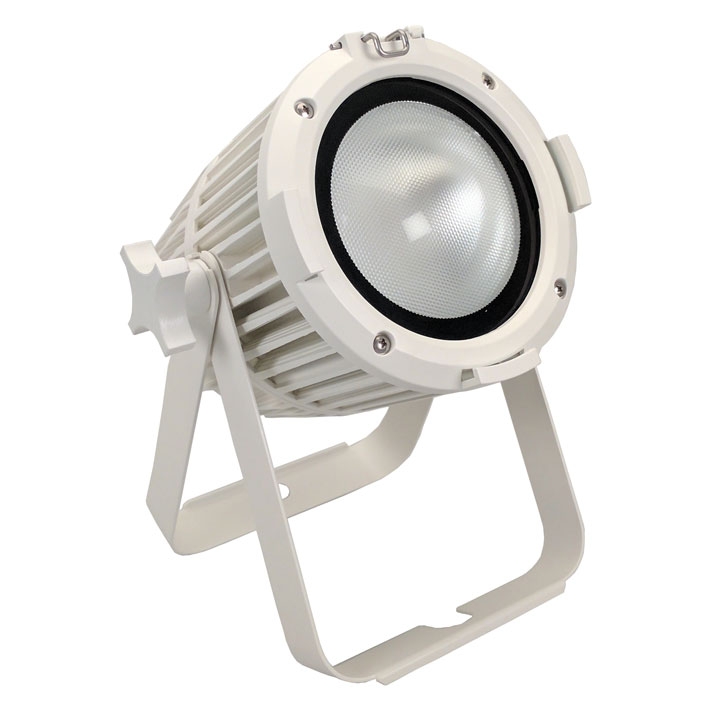

The new Chroma-Q® Studio One 100™ LED PAR is designed to deliver the highest quality of white light from an LED based fixture, for the most demanding applications.
Utilising core LED technology from the Chroma-Q® premium performance lighting range, the multi-purpose fixture is ideal for a wide range of environments and provides a powerful, creative lighting tool.
This fixture is also available as a RGBA version.
- Extreme white outputs
- Choice of daylight, variable and tungsten white CCTs
- Extremely uniform wash
- Fully homogenised beam
- Superior build quality
- Defined 18° beam
- High CRI
- Camera friendly - Flicker free operation
- Floor, truss or wall mountable
- Convection cooled for silent running
- Theatrical grade dimming
Part Numbers: CHSONE100V, CHSONE100VW (White)Request A Demo
Smooth, Homogenised Optics
The Studio One100™ custom optical design and fully homogenised output provides a smooth, uniform and defined 18° beam.
Theatrical Grade Dimming
Theatrical grade dimming emulates the extremely smooth dimming curve of tungsten fixtures.
Flicker Free Operation
The Studio One 100™ offers adjustable dimming frequencies to ensure flicker-free operation on cameras.
Multi-Purpose Workhorse Fixture
With the advanced feature set also including convection cooling for silent operation and a versatile mounting yoke, the Studio One 100™ is suitable for numerous TV, film, studio, exhibition & entertainment lighting applications - complementing the popular Chroma-Q® Studio Force™ and Studio Force Phosphor™ LED fixtures ranges.
Convenient Remote-Controlled Operation
With a simple to use Infra-Red remote control included with each fixture, you can be up and running within minutes without the requirement of a lighting console ---saving time and labour with instant access to pre-set colour temperatures, on/off, dimming and effects.
Compatible With Industry-Standard Accessories
To enable maximum flexibility with users' existing production inventory, the Studio One™ accepts industry-standard 6.25" accessories such as egg crates, barndoors and top hats.
- Studio One 100 V™ Brochure (English)
- Studio One 100 V™ Spec Sheet
- Studio One 100 V™ Architectural Specifications
- Studio One 100 V™ User Manual
- Studio One 100 V™ Quick Start Guide
- Studio One 100 V™ Software
- Studio One 100 V™ IES

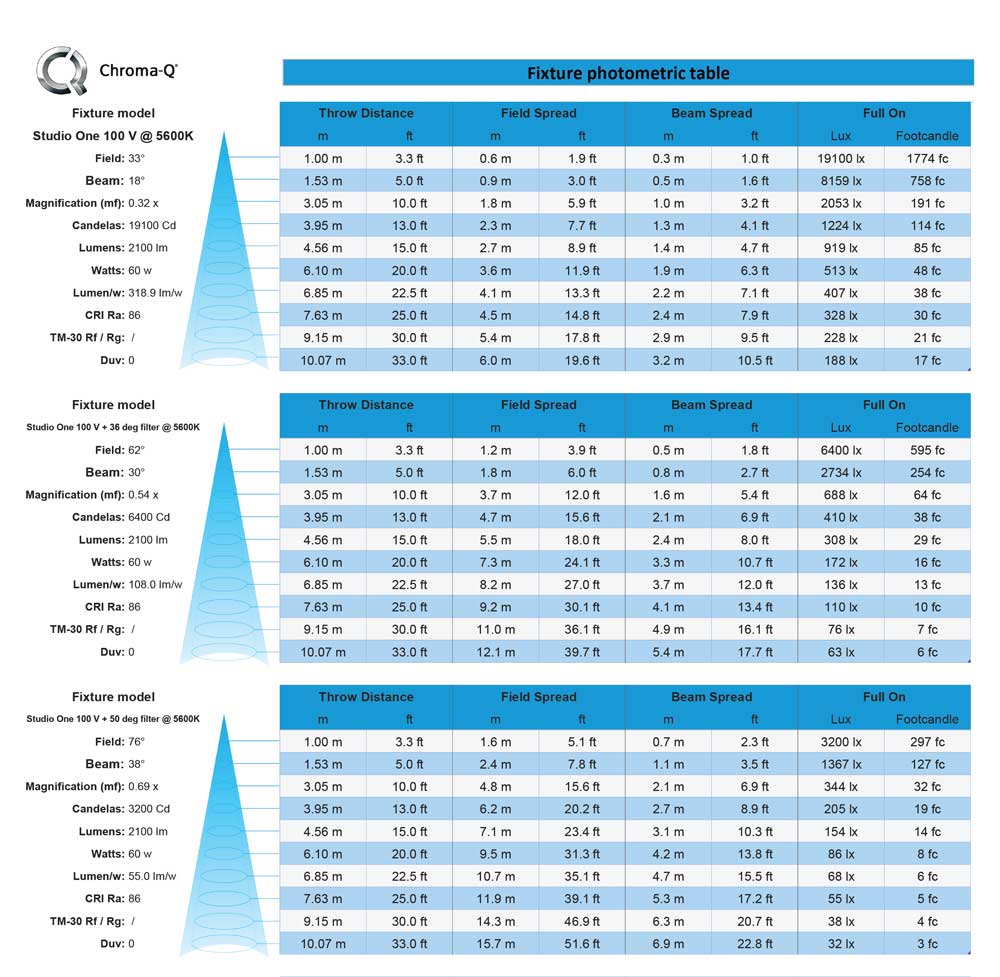

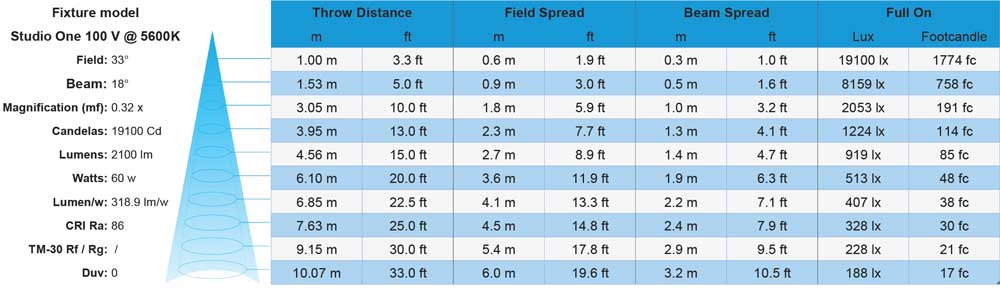

- Studio One 100 V™ Photometric Data
- Studio One 100 V™ 2D Symbols DWG
- Studio One 100 V™ 3D Symbols DWG
- Chroma-Q VectorWorks Symbols
- Studio One 100 V™ Declaration of Conformity
- Studio One 100 V™ Declaration of Origin
- Download All
|Net Dimensions||214mm x 267mm x 232mm / 8.5" x 10.5" x 9"|
|(Full Open Yoke)|
|Net Weight||3.8kg / 8.5lb|
|Shipping Dimensions||406mm x 228mm x 292mm / 16" x 9" x 11.5"|
|Shipping Weight||5.5kg / 12lb|
|Power Input Rating||100-240V AC 50-60Hz 125VA|
|Power Consumption||60W @ 120V AC; 61W @ 230V AC|
|Idle Power Consumption||3W @ 120V AC; 5W @ 230V AC|
|Typical Power & Current||Measurements done with all LEDs at maximum intensity. Measurements made at nominal voltage. Allow for a deviation of +/- 10%.|
|Power Connectors In/Out||powerCON|
|Data Connectors In/Out||XLR 5-pin|
|Control Protocol||ANSI E1.11 USITT DMX 512-A|
|Operating Temperature||0°C to 40°C|
|Construction||Cast machined aluminium|
|Colour||Black (custom colours available on request)|
|Built-In Hardware||Split Yoke, 6.25" Accessory Holder|
|Approvals||CISPR 15/EN55015& EN61547, FCC Part 15 Subpart B:2012 / ICES-003:2012, CSA C22.2, UL 1573, IEC 60598|
|LEDs Per Engine||Warm White
|Control Modes||2 channels CTI, 2 channels WW CW, Master, Slave|
|Wireless Control||On/Off, Fade In, Fade Out|
|Hot Lumen Output (Combined)||2,100|
|Beam Distribution||Symmetrical direct illumination|
|CCT||3,000K - 6,100K|
|Lamp Life||L70 at 50,000 hours|
- CHUSBLOADER2: Chroma-Q Uploader
- Wireless IR Remote
- Colour Frame
