Space Force twobyfour™

Extreme bright and soft white source for large spaces

Discontinued 2023 - Please see the Space Force Family for alternative products.

The Chroma-Q® Space Force twobyfour™ is a cost-effective, bright, high-quality variable white LED soft light panel that is a modern replacement for traditional soft sources used in TV studios, live broadcast, film, green screen, backdrop, and photographic applications.

Request A Demo

Space Force twobyfour Ordering options

Key Features

  • High quality, pure, diffused soft lighting
  • Variable white - 2,800K - 6,000K
  • Smooth, soft uniform beam
  • Up to 55,000 lumens
  • 8 individually control zones
  • Convection cooling for quiet operation
  • Lightweight (21.4kg / 47lbs) with built-in power & dimming
  • Standard 24.6” x 48.5” size, 1:2 ratio (fits in a drop ceiling tile)
  • Variable PWM flicker-free operation
  • Wireless DMX (optional) / RDM
  • Chroma-Q’s proven LED performance

The panel's 2x4 ratio and compact dimensions enable it to be mounted side-by-side, overhead or on a wall, to create a huge volume of light in a standard room ceiling height studio or a small space. A dual sliding slots system allows for various beam control options to be mounted on the fixture.

Highly efficient and natively single-source, the twobyfour is CCT variable between 2,800K and 6,000K, with an output of up to 55,000 lumens. The fixture provides high colour rendering indexes, which are requirements for light sources used in the film and TV industry to ensure accurate colour rendering.

The twobyfour allows for individual control of 2, 4 or 8 sections’ intensity and CCT – creating various shades and effects.

Convection cooling provides quiet operation for studios, and its low consumption provides a cooler working environment, reducing air conditioning needs to further boost energy savings.

With manual & remotely controllable LED frequency up to 96,000Hz, the twobyfour ensures flicker-free operation. Extensive DMX / RDM functionality is provided through wired, or the optional LumenRadio CRMX, connections.

The fixture's built-in power & control electronics make it quick and easy to set up. Built to last, the twobyfour requires minimal maintenance and retains colour consistency between units owing to our LED emitter inspection and proprietary ColorSure™ LED calibration system.

Product Code CQ1512-1000 - Space Force twobyfour variable, with Yoke, with Power Cord, Black
CQ1512-1005 - Space Force twobyfour variable, with Yoke, with Power Cord, LumenRadio Installed, Black
CQ1512-1500 - Space Force twobyfour variable, with Yoke, with Power Cord, White
CQ1512-1505 - Space Force twobyfour variable, with Yoke, with Power Cord, LumenRadio Installed, White
Net Dimensions (WxHxD) 1,233mm x 626mm x 216mm / 48.5” x 24.6” x 8.5”
Net Weight 21.4kg / 47lbs (without yoke) 26kg / 57lbs (with yoke)
Shipping Dimensions (WxHxD) 1,397mm x 724mm x 356mm / 55” x 28.5” x 14”
Shipping Weight 32.3kg / 71lbs
Power Supply Built-in
Power Input Rating 100-240 VAC, 50-60 Hz, 920 VA
Power Factor 0.97 @ 120V AC,0.97 @ 230V AC
Power Consumption 825W @ 120V AC, 825W @ 230V AC
Inrush Current 81A @ 120V AC, 82A @ 230V AC
Idle Power Consumption 32W @ 120V AC, 34W @ 230V AC
Max Sound Level (Decibel) 38.7 db
Idle Sound Level (Decibel) TBA
Power Connectors In/Out Neutrik powerCON TRUE1
Data Connector In/Out Neutrik XLR 5-pin male and female
Operating Temperature 0°C to 40°C
Control Protocol DMX
Construction Powder Coated Aluminum
Colour Black / White
IP Rating IP20
Approvals CISPR 22:2012/ EN55022:2012 & CISPR 24 :2010/ EN55024: 2010,
ICES-003 :2017 & FCC Part 15 Subpart B: 2017, CSA C22. No. 166-:
2015, EN 60598-2-17/a2:1991, UL 1573:2003/R:2016-12

* Preliminary specs

  Space Force twobyfour
Control Modes INT-CCT, INT-CCT-EXTENDED
Dimming Curve Smooth
Hot Lumen Output (Combined) @2800K:36000 lm, @4400K:55000 lm, @6000K:53000 lm
Luminance 3200lx / 300fc @ 3m / 9.8ft
Optics Fully homogenised lenses
Beam Angle 80° (approx)
Beam Distribution Symmetrical Direct Illumination
CCT Adjustable 2,800 - 6,000K
CRI & TLCI Up to 97
TM-30-18 Up to Rf 94, Rg 100
SSI Up to 87
Lamp Life L70 at 50,000 hours

* Preliminary specs

  • CHSPFSY: Space Force Compl. Manual Offset Yoke with Hardware, BK
  • CQ647-9013    Space Force Yoke Hardware Kit only for (without Yoke and Plates and Spigot)
  • CQ647-9014    Mounting Plate for Space Force Yoke (CHSPFSY) Kit (W/O Yoke, W/O Hardware)
  • CQ 1512-9014 - Mounting Plate For Yoke Kit (W/O Yoke w/o Hardware, for vertical mount)
  • CQ1512-9020 - Long Yoke Kit Bridle 2 ways (set of 2)
  • CQ1512-9040: Space Force twobyfour 30 degree Soft Egg Crate
  • CQ1512-9045: Space Force twobyfour 60 degree Soft Egg Crate
  • CQ1512-9050: Space Force twobyfour 75 degree Soft Egg Crate
  • CQ650-9070:  LumenRadio Kit – user installed
  • CQ1512-9080: Protective Lens for the Space Force twobyfour
  • CH889-9006: Cable 12/3 5-15P (Male Edison) to PowerCON TRUE1® SJTOOW Adapter 6'

Space Force twobyfour

PDF Download

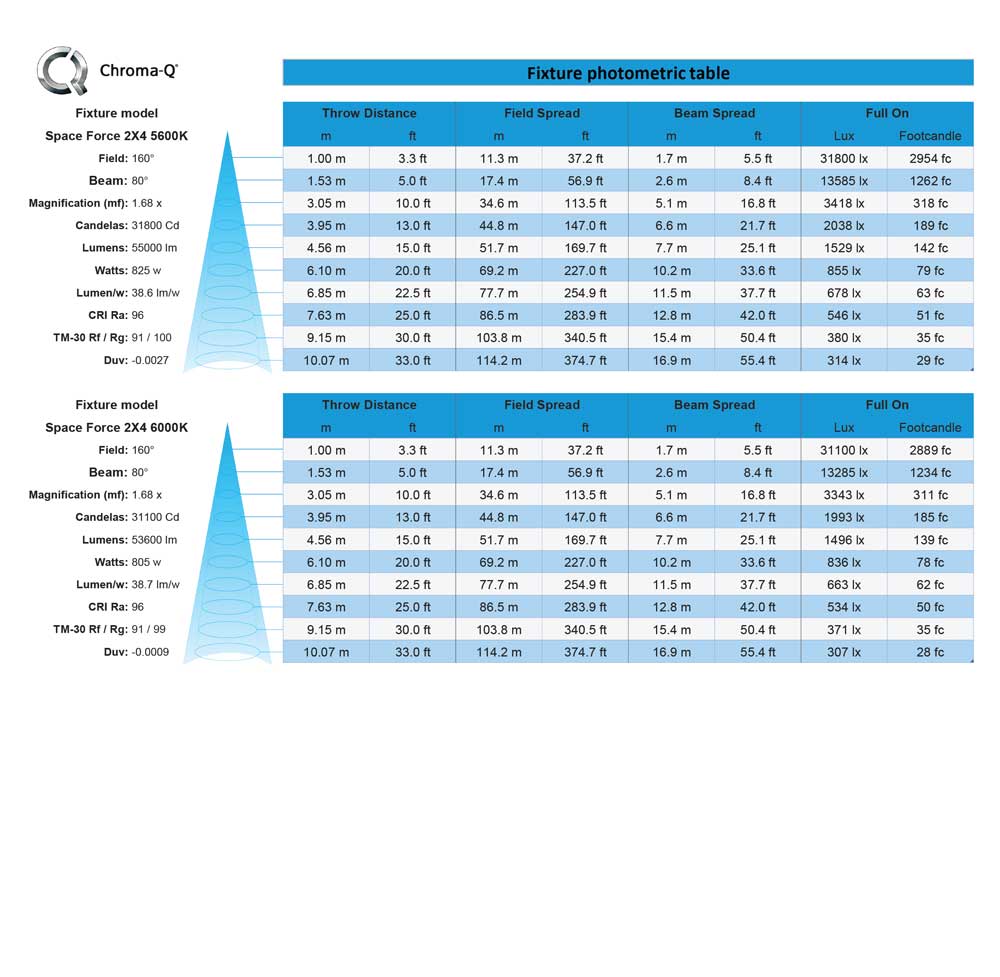

Photometrics Space Force twobyfour

Photometrics Space Force twobyfour
