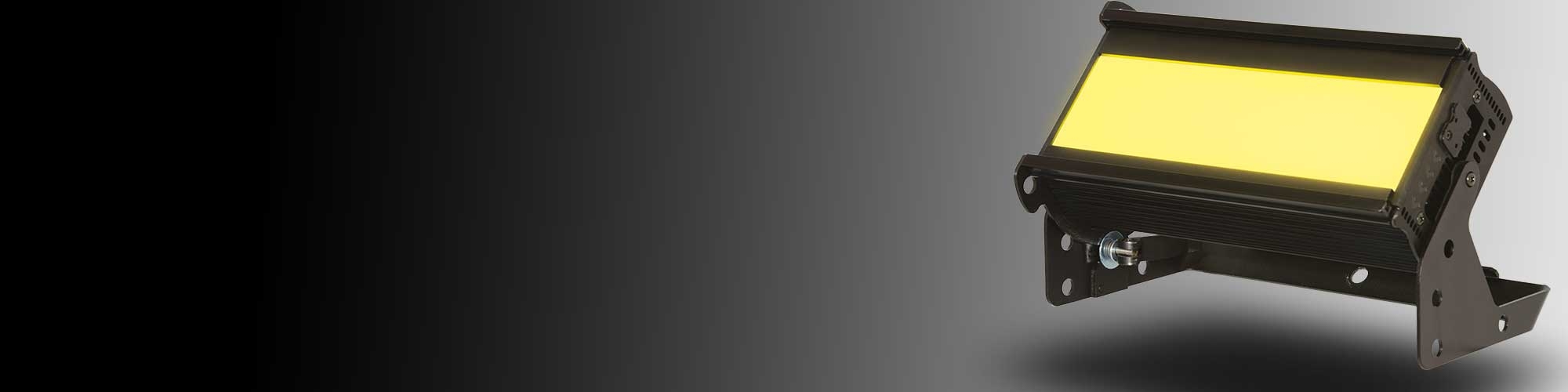

Studio Force D 12 Phosphor™

Custom LED Film & TV Lighting

This product was discontinued in April 2024.

The new Chroma-Q® Studio Force D 12 Phosphor™ is a 5,600K CCT, daylight white fixture which utilises innovative LED technologies found in the Studio Force™ range to provide an equivalent soft edge output to a fluorescent fixture - up to 8,210 lumens - developed specifically for use in TV, film and broadcast studio environments. Other features include an extremely smooth uniform wash, extra soft beam, theatrical grade dimming, and laboratory calibration to match Black Body Locus. Designed for practicality, the unit is equipped with a manual control mode, colour touch screen interface, fanless, studio & full modes for maximum control of the units, and a range of optional accessories.

Key Features

5,600K CCT daylight white
Extreme output – up to 8,210 lumens
Extra soft beam – very wide output
Extremely smooth, uniform wash
Theatrical grade dimming
Ideal for film and studio applications
Factory calibrated to match Black Body Locus
335mm / 13.2" length ideal for floor, wall, or truss mounting
Camera friendly
PowerCon input and output for easy daisy chaining of fixtures
A broad range of accessories available, including a barn door and spigot adaptor
Fanless, studio & full control modes
Intuitive colour touch screen interface
Flat end plates for seamless wall-washing
Built-in power supply
Hidden quick-release fixings
Rugged extruded aluminium body

Part Number: CHSFDP12

Request A Demo

Extreme Output
With an extreme output of up to 8,210 lumens, the Studio Force D 12 Phosphor™ packs an impressive punch for its size.

Multi-purpose
The Studio Force D 12 Phosphor™ is specifically designed for film and studio soft lighting applications. Optional accessories include a spigot adaptor, egg crate louver, top hat, half top hat, and barn door.

Colour
The Studio Force Phosphor™ range includes ColorSure™ technology for enhanced consistency across each light engine and when using multiple fixtures.

Optics & Dimming
The Studio Force Phosphor™ range's camera-friendly custom optical design provides a smooth, uniform output, matched by theatrical grade dimming.

Practical & Mechanical
On the outside, the Studio Force D 12 Phosphor™ has been designed to provide maximum versatility and ease of use. The fixture features a colour touch screen interface for easy operation and a full manual control mode.

The built-in power supply, hidden quick release fixings requiring no tools, and PowerCon and 5-pin DMX connections in and out provide fast deployment and simple cable management.

The Studio Force Phosphor™ range also features fanless, studio & full modes for maximum control of the units, flat end plates for seamless wall-washing, and a rugged extruded aluminium body.

Product Code	CHSFDP12
Dimensions*	335mm x 190mm x 218mm / 13.2"x 7.5" x 8.6"
Weight	4kgs / 9lbs
Shipping Dimensions	432mm x 343mm x 279mm / 17" x 13.5" x 11"
Shipping Weight	6kgs / 13lbs
Power Supply	Built-in
Power Input Rating	100-240V AC, 50-60 Hz, 160VA
Power Factor	0.998
Power Consumption	150W
Typical Power & Current	Measurements done with all LEDs at maximum intensity. Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Power Connector In/Out	PowerCon
Data Connectors In/Out	XLR 5-pin
Control Protocol	ANSI E1.11 USITT DMX 512-A
Cooling System	Forced - 1 fan
Operating Temperature	0°C to 40°C
Construction	Anodised aluminium extrusion
Colour	Black
Built-In Hardware	Quick release lever for tilt adjustment
IP Rating	IP20
Approvals	CISPR 22/EN55022 & CISPR 24/EN55024, ICES- 003 & FCC Part 15 Subpart B, CSA C22. No.166- M1983:R2008 UL 1573:2010; UL 8750:2009

LED Engines	2
LEDs Per Engine	24 Blue LEDs
Total LEDs	48
Control Modes	1 channel Level, 1 channel Look Sel, Manual/Mstr, Slave, Look Store
Dimming Curve	Theatrical
Variable Effects Engine	N/A
Effects Parameters	N/A
Hot Lumen Output	Up to 8,210
Optics	Remote phosphor panel
Beam Angle	Softlight
Beam Distribution	Symmetrical direct illumination
CCT	5600K (+/- 200K)
Colour Gamut	Performance enhanced
CRI	Up to 71
Lamp Life	L70 at 50,000 hours

CHCFZH12: Zip Hood For 12
CHCFSA12: Spigot Adaptor For Force 12
CHCFECL12: Egg Crate Louver For Force 12
CHCFTH12: Top Hat For Force 12
CHCFHTH12: Half Top Hat For Force 12
CHCFBD12: Barn Door For Force 12
CHCFDBX: Diffuser Box For Force 12
CHCFLBA12: Lightbank Adaptor (Speedring) For Force 12
CHCFLB12: Lightbank For Force 12
CHCFLBK-K: Lightbank Kit+ For Force 12 (consists of Lightbank Adaptor (Speedring) & Lightbank)
CHUSBLOADER2: Chroma-Q Uploader
