2inspire™

Three sizes, no compromises, 2inspire™.

The new Chroma-Q® 2inspire™ PoE family delivers truly flexible lighting into any space, quickly and efficiently. 2inspire™ is a compact, silent, bright fixture in 3 sizes. These installation luminaires deliver studio-grade tuneable white light and pure theatrical quality colours. A holistically designed accessory collection easily mounts each fixture - on a wall, as a pendant, in a ceiling, or from a yoke. Innovative technology minimises deployment costs and maximises efficiency, making every 2Inspire flexible, sustainable, and durable. This fixture features easy connection using power over ethernet.

The 2inspire 300 product replaces the Inspire Mini™ RGBW.

Request A Demo

Details

The 2inspire™ PoE family provides a rich, full range of colour and pure tuneable whites. The new Chroma-Q Gen3 LED engine - designed, built, and calibrated in North America – comes from over 20 years of experience at the very cutting edge of LED technology. It delivers 2,400K to 6,500K broadcast grade whites and pure theatrical colours using RGB, WW, and CW LEDs.

Minimising deployment time and cost

Each 2inspire™ PoE requires a single ethernet cable carrying power and data.

Holistic accessory collection

2inspire™ accessories are an intrinsic part of the design. Accessories should not just be an afterthought but an inherent part of the design. One source type, three sizes, four lens options, and over twenty accessories give hundreds of different physical configurations – including wall, pendant, ceiling, and yoke mounting - that can be quickly and easily adjusted on-site.

Precise, consistent control

Control your environment. Seamless color control and theatrical grade dimming of the precisely calibrated 2inspire™ LED engine deliver unmatched creativity. Fully convection-cooled, the 2inspire™ operates silently, even in the most noise-sensitive environments. The super-fast LED driver system ensures no flickering to the eye or high-speed cameras. Engineered for IP20 and IP65 applications is designed for your most creative applications.

  2inspire™ 100 2inspire™ 200 2inspire™ 300
Product Code

CQ1501-1000 - 2inspire 100 POE RGBWWCW IP20 BLK
CQ1501-1005 - 2inspire 100 POE RGBWWCW IP20 WHT
CQ1501-1010 - 2inspire 100 POE RGBWWCW IP65 BLK
CQ1501-1015 - 2inspire 100 POE RGBWWCW IP65 WHT

CQ1502-1000 - 2inspire 200 POE RGBWWCW IP20 BLK
CQ1502-1005 - 2inspire 200 POE RGBWWCW IP20 WHT
CQ1502-1010 - 2inspire 200 POE RGBWWCW IP65 BLK
CQ1502-1015 - 2inspire 200 POE RGBWWCW IP65 WHT

CQ1503-1000 - 2inspire 300 POE RGBWWCW IP20 BLK
CQ1503-1005 - 2inspire 300 POE RGBWWCW IP20 WHT
CQ1503-1010 - 2inspire 300 POE RGBWWCW IP65 BLK
CQ1503-1015 - 2inspire 300 POE RGBWWCW IP65 WHT

Net Dimensions (without fixings):

W: 93mm / 3.7”
H: 93mm / 3.7”
D: 108mm / 4.3”

W: 118mm / 4.7”
H: 118mm / 4.7”
D: 145mm / 5.7”

W: 147mm / 5.8”
H: 147mm / 5.8”
D: 195mm / 7.7”

Net Weight: 0.62kg / 1.4lb 1.15kg / 2.5lb 2.5kg / 5.1lb
Hot Lumen Output: 900 Lumens ~PAR 30 size 1400 Lumens ~PAR 36 size 3100 Lumens ~PAR 46 size
Beam Angle: 21° (approx.) 19° (approx.) 27° (approx.)
Power Consumption: 20W 40W 60W
Total heat dissipation:  69 BTU/hr 137 BTU/hr 205 BTU/hr
Color mixing: RGB WW CW
Color Temp Control: Variable 2400 - 6500K
Tint Control: -2  to +2
Control Protocol: Artnet / sACN / RDM
RDM compliance: Yes
Control Modes: 18
DMX Channels: 1 to 13
Dimming Curve: Inverse square-law, square-law, S-curve
Setting and Addressing: Through Art-Net RDM
Optics: Fully homogenised
Beam Distribution:  Symmetrical
Colour Engine: Gen3 ColorSure™ calibrated engine
CCT: 2400-6500K
Colour Gamut Ratio: sRGB=151%; NTSC=107%; AdobeRGB=112%; DCI-P3=112%; REC.2020=80%
CRI: >90
TLCI: >90
IES TM-30 Rf: >90
TM-30 Rg: <100 to 103
Lamp Life: <L70 50,000hr
Power & Data Connector In: RJ45 Ethernet POE
Mounting points: Multi
Location: Dry IP20, Wet IP65
Orientation: Any
Construction:

Power coated black aluminium cast; Powder coated white aluminium cast

Colour: Black RAL 9005/ White RAL 9010
IP Rating: IP20 / IP65
Power Supply: 802.3at / 802.3bt Class A / Class B
Power Input Rating: 50–57 VDC

Idle Power Consumption:

3W
Cooling System: Natural Convection

Max Surface Temperature:

Ta=60°C

Operating Temperature:

-20°C to 40°C
Approvals:

CISPR 22 :2006/EN55022 :2006 & CISPR 24 :1997/EN55024 :1998; ICES-003 :2004 & FCC Part 15 Subpart B: 2007; CSA C22. No.166-M1983:R2008; UL 1573:2003; UL 8750

2inspire™ 100 PDF Download

2inspire 100 5600k Photometric Table


2inspire™ 200 PDF Download

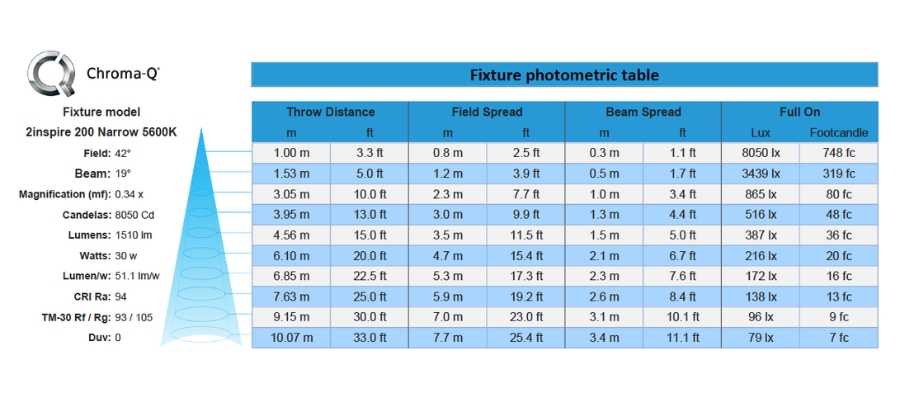

2inspire 200 5600k Photometric Table


2inspire™ 300 PDF Download

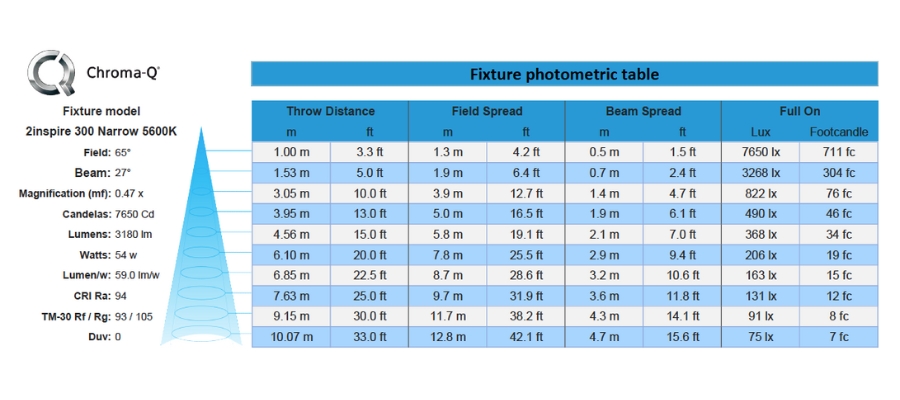

2inspire 300 5600k Photometric Table

Part Number Description
CQ1509-9001 2inspire POE Series Wall Mount Black
CQ1509-9002 2inspire POE Series Wall Mount White
CQ1509-9011 2inspire POE Series Pendant Mount Kit (W/O Stem, W/O Yoke) Black *
CQ1509-9012 2inspire POE Series Pendant Mount Kit (W/O Stem, W/O Yoke) White *
CQ1509-9016 2inspire POE Series Pendant Stem 1ft, 300mm Black
CQ1509-9017 2inspire POE Series Pendant Stem 1ft, 300mm White
CQ1509-9021 2inspire POE Series Pendant Stem 2ft, 600mm Black
CQ1509-9022 2inspire POE Series Pendant Stem 2ft, 600mm White
CQ1509-9026 2inspire POE Series Pendant Stem 3ft, 900mm Black
CQ1509-9027 2inspire POE Series Pendant Stem 3ft, 900mm White
2inspire™ 100 Accessories
CQ1509-9106 2inspire 100 Yoke Black*
CQ1509-9107 2inspire 100 Yoke White*
CQ1509-9111 2inspire 100 Shroud for Pendant Mount Kit Black**
CQ1509-9112 2inspire 100 Shroud for Pendant Mount Kit White**

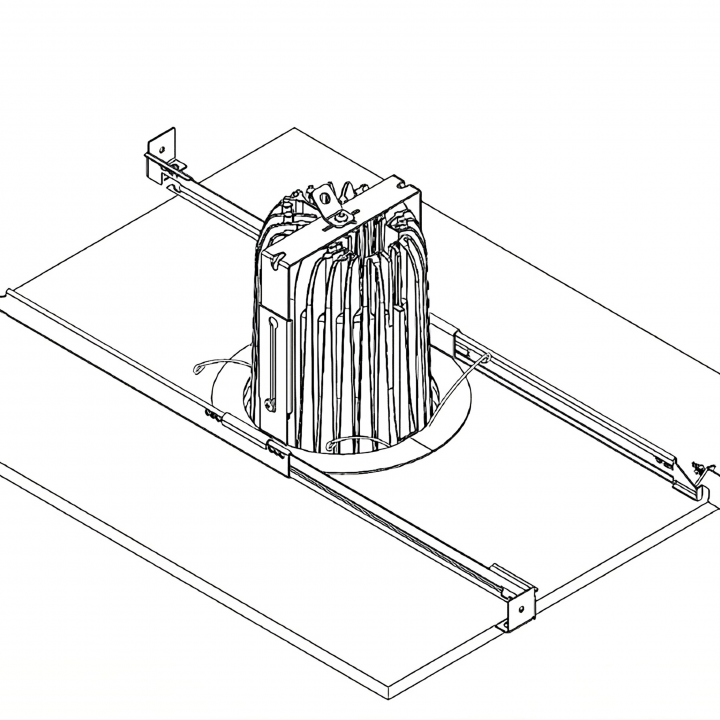

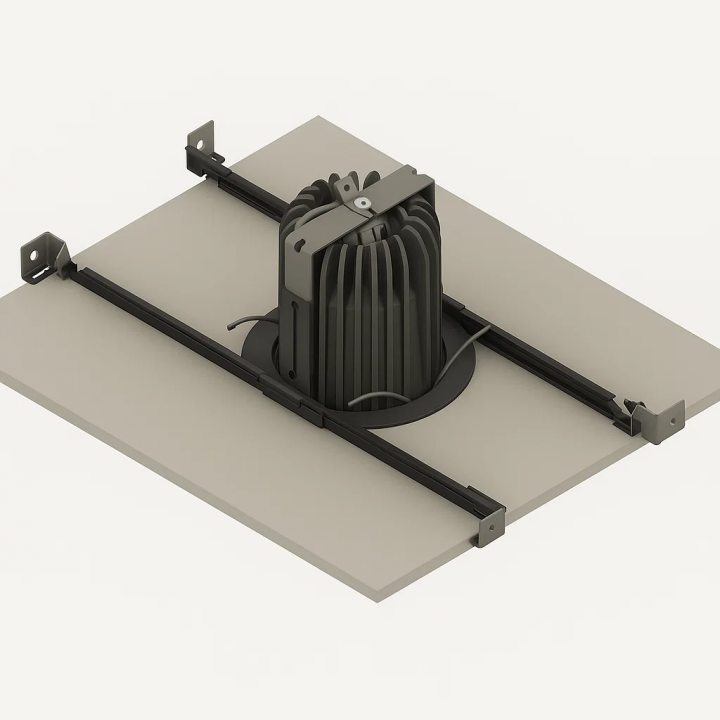

CQ1509-9116 2inspire 100 Blind Ceiling Mount Flush 0° Black
CQ1509-9117 2inspire 100 Blind Ceiling Mount Flush 0° White
CQ1509-9118 2inspire 100 Blind Ceiling Mount Recessed 0° Black
CQ1509-9119 2inspire 100 Blind Ceiling Mount Recessed 0° White
CQ1509-9136 2inspire 100 Honeycomb Louver Black
CQ1509-9137 2inspire 100 Honeycomb Louver White
CQ1509-9141 2inspire 100 Barndoor Black
CQ1509-9142 2inspire 100 Barndoor White
CQ1509-9146 2inspire 100 Snoot Black
CQ1509-9147 2inspire 100 Snoot White
CQ1509-9151 2inspire 100 Medium diffusion (pack of 10)
CQ1509-9156 2inspire 100 Wide diffusion (pack of 10)
CQ1509-9161 2inspire 100 Extra wide diffusion (pack of 10)
CQ1509-9166 2inspire 100 asymmetrical diffusion (pack of 10)
CQ1509-9171 2inspire 100 gel holder C ring BK (pack of 10)
CQ1509-9172 2inspire 100 gel holder C ring WH (pack of 10)
2inspire™ 200 Accessories
CQ1509-9206 2inspire 200 Yoke Black*
CQ1509-9207 2inspire 200 Yoke White*
CQ1509-9211 2inspire 200 Shroud for Pendant Mount Kit Black**
CQ1509-9212 2inspire 200 Shroud for Pendant Mount Kit White**
CQ1509-9216 2inspire 200 Blind Ceiling Mount Flush 0° Black
CQ1509-9217 2inspire 200 Blind Ceiling Mount Flush 0° White
CQ1509-9218 2inspire 200 Blind Ceiling Mount Recessed 0° Black
CQ1509-9219 2inspire 200 Blind Ceiling Mount Recessed 0° White
CQ1509-9221 2inspire 200 Blind Slant Ceiling Mount 0° Black
CQ1509-9222 2inspire 200 Blind Slant Ceiling Mount 0° White
CQ1509-9226 2inspire 200 Blind Slant Ceiling Mount 0-25° Black
CQ1509-9227 2inspire 200 Blind Slant Ceiling Mount 0-25° White
CQ1509-9231 2inspire 200 Blind Slant Ceiling Mount 25-45° Black
CQ1509-9232 2inspire 200 Blind Slant Ceiling Mount 25-45° White
CQ1509-9236 2inspire 200 Honeycomb Louver Black
CQ1509-9237 2inspire 200 Honeycomb Louver White
CQ1509-9241 2inspire 200 Barndoor Black
CQ1509-9242 2inspire 200 Barndoor White
CQ1509-9246 2inspire 200 Snoot Black
CQ1509-9247 2inspire 200 Snoot White
CQ1509-9251 2inspire 200 Medium diffusion (pack of 10)
CQ1509-9256 2inspire 200 Wide diffusion (pack of 10)
CQ1509-9261 2inspire 200 Extra wide diffusion (pack of 10)
CQ1509-9266 2inspire 200 asymmetrical diffusion (pack of 10)
CQ1509-9271 2inspire 200 gel holder C ring BK (pack of 10)
CQ1509-9272 2inspire 200 gel holder C ring WH (pack of 10)
2inspire™ 300 Accessories
CQ1509-9306 2inspire 300 Yoke Black*
CQ1509-9307 2inspire 300 Yoke White*
CQ1509-9311 2inspire 300 Shroud for Pendant Mount Kit Black**
CQ1509-9312 2inspire 300 Shroud for Pendant Mount Kit White**
CQ1509-9316 2inspire 300 Blind Ceiling Mount Flush 0° Black
CQ1509-9317 2inspire 300 Blind Ceiling Mount Flush 0° White
CQ1509-9318 2inspire 300 Blind Ceiling Mount Recessed 0° Black
CQ1509-9319 2inspire 300 Blind Ceiling Mount Recessed 0° White
CQ1509-9321 2inspire 300 Blind Slant Ceiling Mount 0° Black
CQ1509-9322 2inspire 300 Blind Slant Ceiling Mount 0° White
CQ1509-9326 2inspire 300 Blind Slant Ceiling Mount 0-25° Black
CQ1509-9327 2inspire 300 Blind Slant Ceiling Mount 0-25° White
CQ1509-9331 2inspire 300 Blind Slant Ceiling Mount 25-45° Black
CQ1509-9332 2inspire 300 Blind Slant Ceiling Mount 25-45° White
CQ1509-9336 2inspire 300 Honeycomb Louver Black
CQ1509-9337 2inspire 300 Honeycomb Louver White
CQ1509-9341 2inspire 300 Barndoor Black
CQ1509-9342 2inspire 300 Barndoor White
CQ1509-9346 2inspire 300 Snoot Black
CQ1509-9347 2inspire 300 Snoot White
CQ1509-9351 2inspire 300 Medium diffusion (pack of 10)
CQ1509-9356 2inspire 300 Wide diffusion (pack of 10)
CQ1509-9361 2inspire 300 Extra wide diffusion (pack of 10)
CQ1509-9366 2inspire 300 asymmetrical diffusion (pack of 10)
CQ1509-9371 2inspire 300 gel holder C ring BK (pack of 10)
CQ1509-9372 2inspire 300 gel holder C ring WH (pack of 10)
